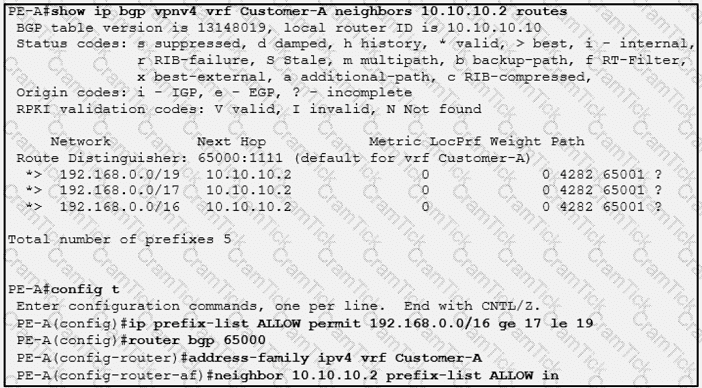

350-501 Implementing and Operating Cisco Service Provider Network Core Technologies (350-501 SPCOR) Questions and Answers

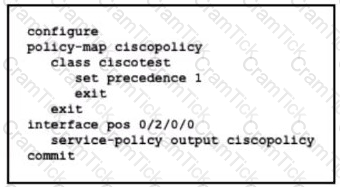

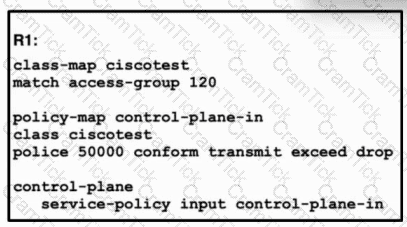

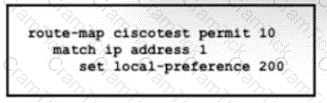

The configuration applies a QoS policy to the pos0/2/0/0 interface, which affects traffic as it exits the interface. The policy map “ciscopolicy” references the class map “ciscotest”, where traffic matching the class map criteria will be remarked. The command set precedence 1 within the class map “ciscotest” indicates that the traffic will be remarked to IP precedence 1. Therefore, the correct effect of this configuration is that traffic identified by the “ciscotest” class map will be remarked from its original IP precedence to IP precedence 1 when it exits the pos0/2/0/0 interface.

References: = This explanation is based on the QoS configuration practices as outlined in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials.

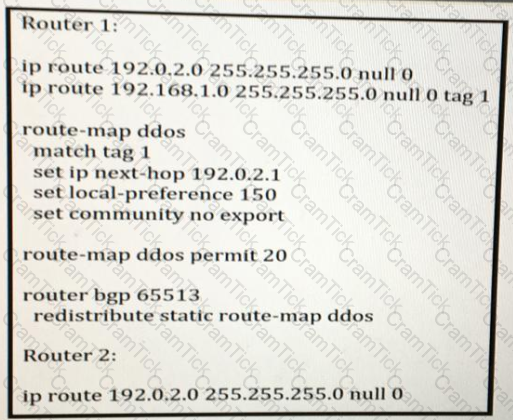

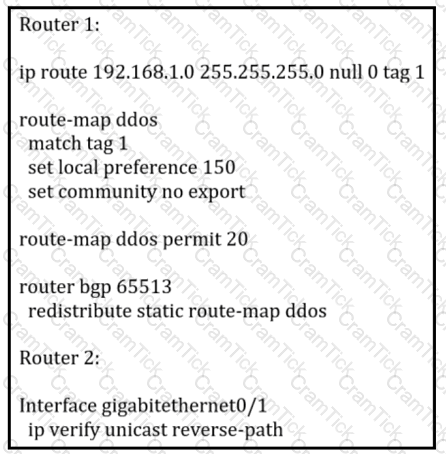

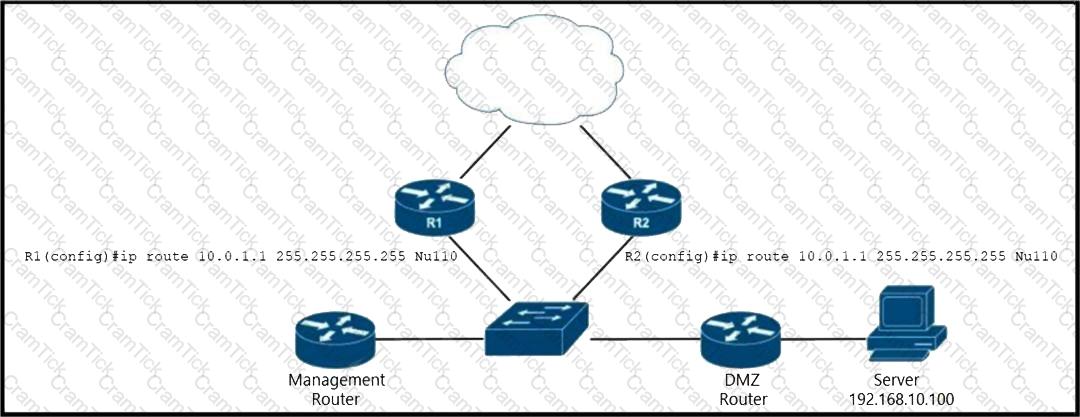

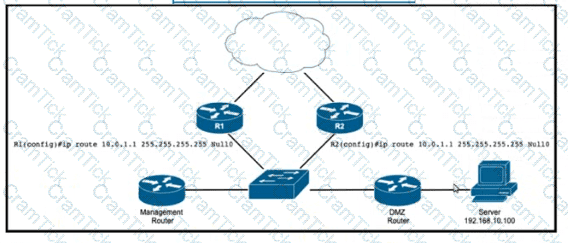

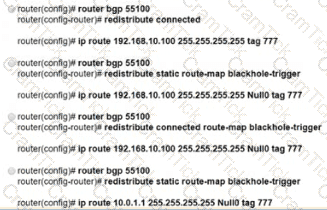

Router 1 is the trigger router in a Remote Triggered Black Hole (RTBH) implementation. In the configuration provided, Router 1 has a static route to null0 for network 192.168.1.0/24 with a tag of 1, which is used to drop traffic destined to this network, effectively mitigating DDoS attacks. The route-map “ddos” matches this tag and sets local preference and community accordingly. The BGP process redistributes this static route based on the “ddos” route-map, signaling other routers in the network to drop traffic destined for the attacked network. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - RTBH section1.

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/fnetflow/configuration/xe-3s/fnf-xe-3s-book/fnf-ipfix-expor t.html#d27853e197a1635

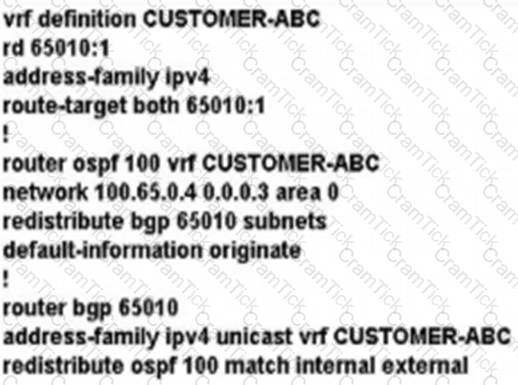

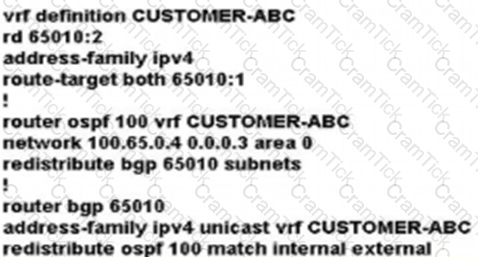

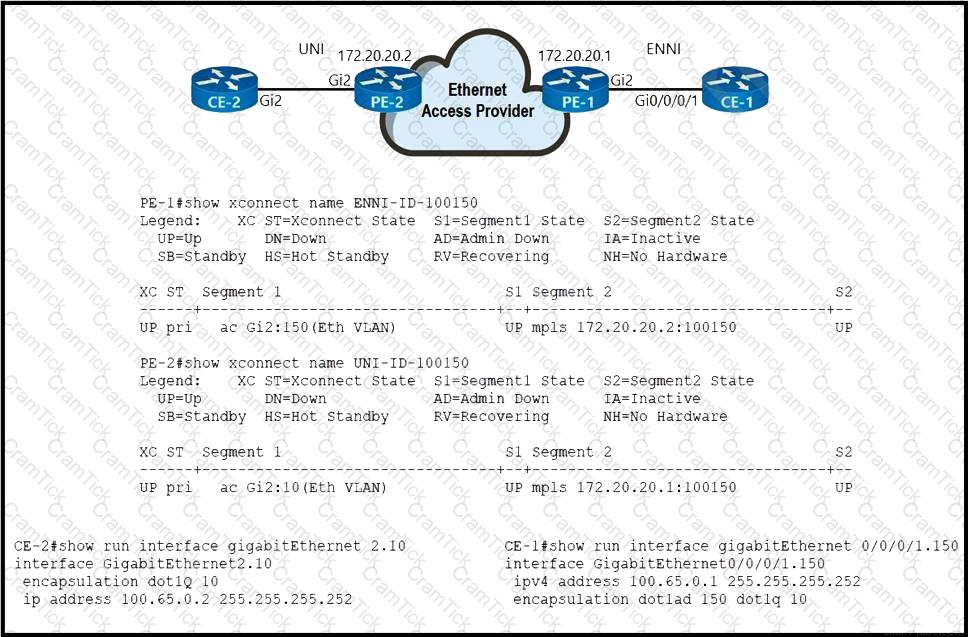

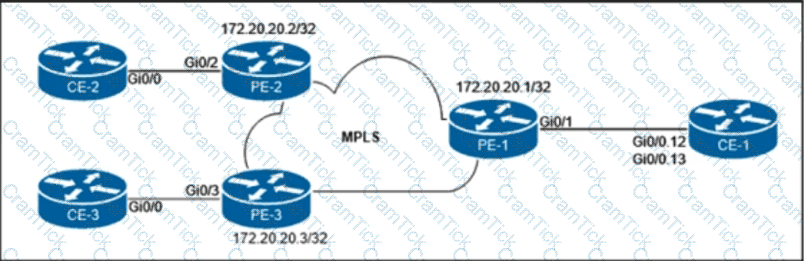

 Both options provide a default route pointing to CE-1, allowing CE-2 to access the internet. The specific choice would depend on additional context or requirements not provided in the question.

References:

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) study materials.

• Cisco MPLS TE tunnels can be established using IS-IS and OSPF as the routing protocols. These protocols allow the creation of traffic-engineered paths within the MPLS network.
• References: Implementing and Operating Cisco Service Provider Network Core Technologies course materials.

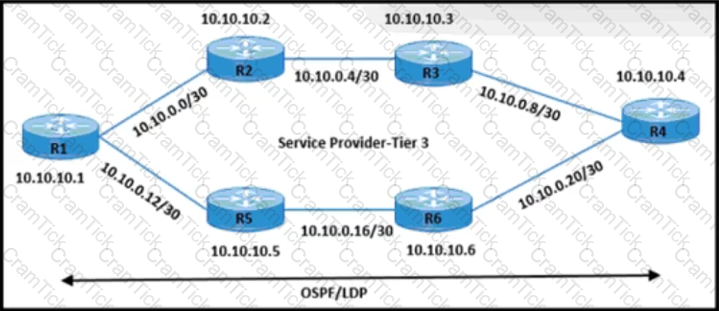

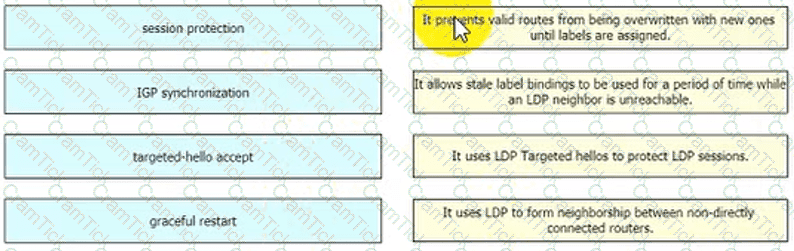

 In the context of Implementing and Operating Cisco Service Provider Network Core Technologies, LDP-IGP Synchronization is configured to ensure that the IGP and LDP convergences are synchronized. Option C is correct because it shows the configuration where router ISIS 1 is being configured with MPLS LDP sync, but not on a specific interface, ensuring that LDP is operational on all interfaces where IS-IS is enabled before routes are advertised. References := Cisco

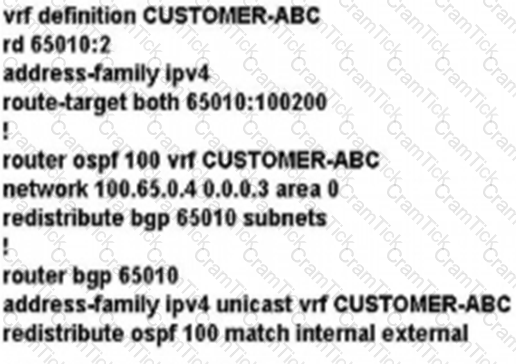

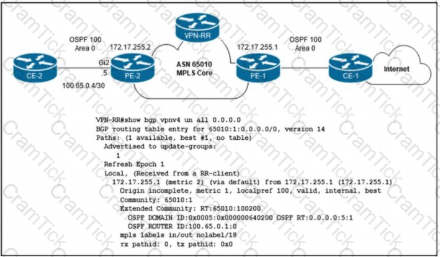

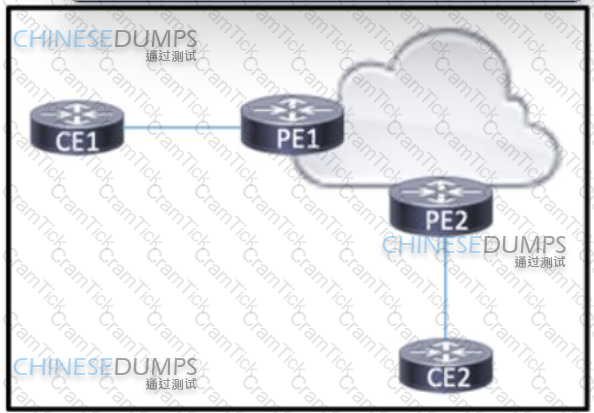

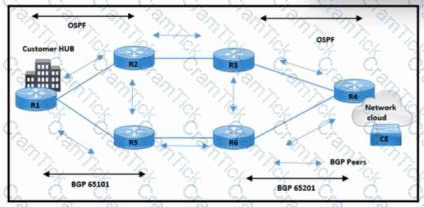

 In this scenario, BGP is used in the core of the service provider network, while OSPF serves as the PE-CE routing protocol. To ensure communication between CE1 and CE2, which are located in different geographical locations, it’s essential for PE1 and PE2 to share routes. This can be achieved by configuring both PEs to mutually redistribute BGP and OSPF routes within the VRF dedicated for that customer, ensuring seamless communication between both customer endpoints. References: Implementing and Operating Cisco Service Provider Network Core Technologies

• PE-2 should import the OSPF route from the global routing table into the CUSTOMER-ABC VRF. This allows the VRF to have internet reachability.
• The configuration should include an import route-target statement under the VRF configuration on PE-2. The route target should match the one used by CE-1 to advertise the default route (0.0.0.0/0) to PE-1.

References:

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) study guide or official documentation.

In the context of regular expressions, the caret (^) is used to indicate the start of a string. This is a fundamental concept in pattern matching using regular expressions, where ^ matches the position at the beginning of the string.

References: This information is consistent with regular expression syntax as described in various Cisco documentation and resources related to Cisco IOS software configurations.

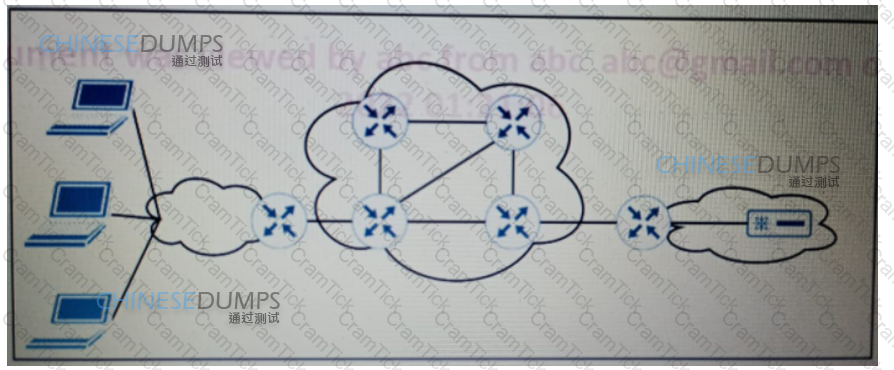

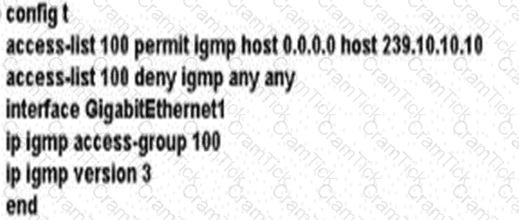

In a multicampus network that supports video streaming, the engineer should configure the network to use IGMPv3. IGMPv3 is the version of IGMP that supports Source-Specific Multicast (SSM). SSM allows the receiver to specify the source of the multicast stream, which is particularly useful for video streaming applications. By using SSM, the network can efficiently deliver the video content from the specified source to the receivers without unnecessary traffic from other sources. References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.01.

When OSPF routers establish adjacency, they must agree on the MTU size on the connecting interface. If the MTUs do not match, the routers will not form an OSPF adjacency, and the link between them will not come up. Therefore, configuring the MTUs on the interfaces to match is essential for the OSPF network to function correctly.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

Cisco MPLS TE uses OSPF extensions to allow for optimized transit between a headend router and a destination router by utilizing Opaque LSAs. Opaque LSAs allow for the calculation and establishment of unidirectional tunnels that are set according to the network constraint. The tunnels are built bidirectionally by utilizing Router LSAs, which share router link advertisements to each router within the MPLS environment. ASBR Summary LSAs are also used to share OSPF domain information so that the two routers know how to reach each other during tunnel setup. Furthermore, Network LSAs are used to share RSVP information which is necessary for setting up the tunnel between the two routers.

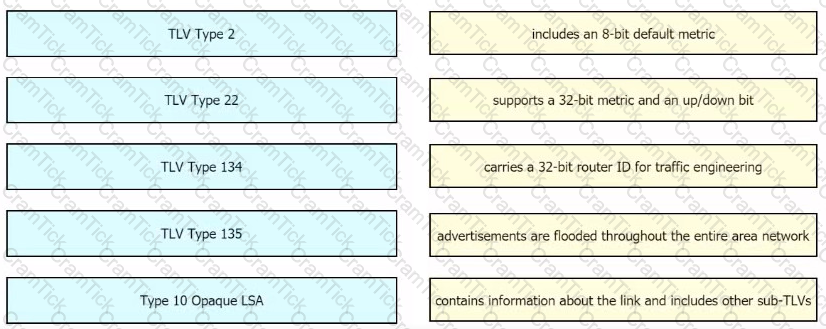

Application, table Description automatically generated with medium confidence

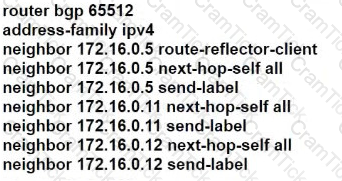

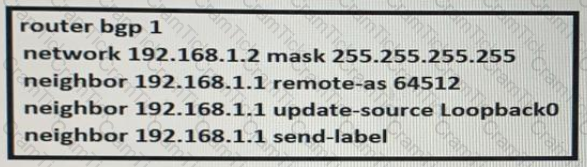

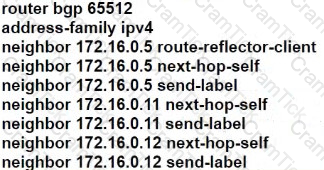

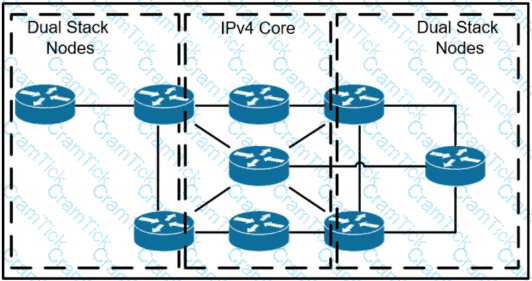

• In Cisco Unified MPLS, BGP (Border Gateway Protocol) is used to transport labels along with network layer reachability information. RFC 3107 defines BGP/MPLS IP Virtual Private Networks (VPNs) and allows BGP to carry MPLS labels, enhancing scalability and flexibility in MPLS networks.

References

1: Cisco. “Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR).” Link

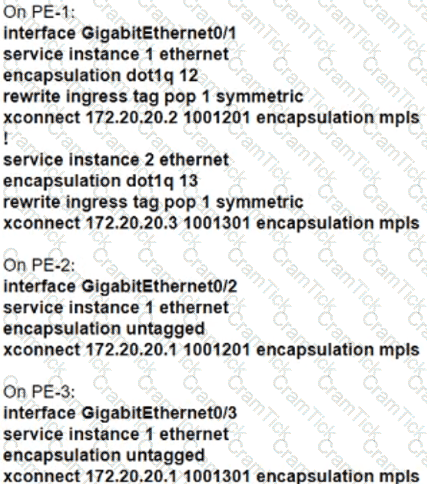

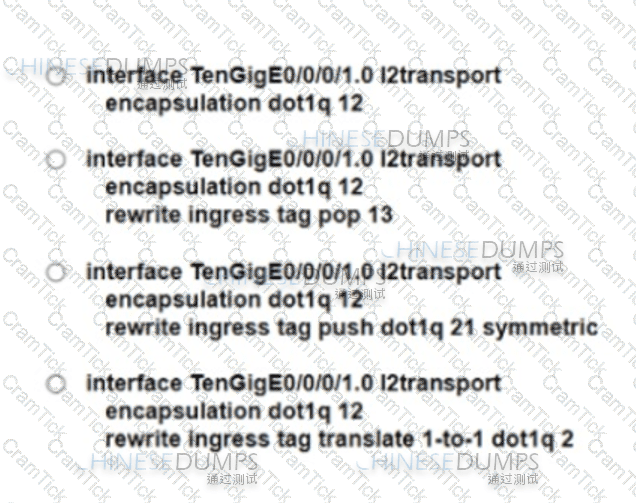

In the context of VPLS (Virtual Private LAN Service) configuration, the engineer should perform additional configurations to enable the virtual switch instance. The correct answer is Option A, which likely involves configuring interface VLAN and associating it with xconnect vfi to establish end-to-end LAN connectivity between customer’s remote offices. This is essential for enabling VPLS, which allows geographically dispersed sites to be connected over a service provider’s network as if they were on the same local area network.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training & Certification

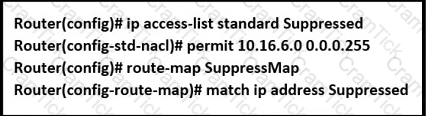

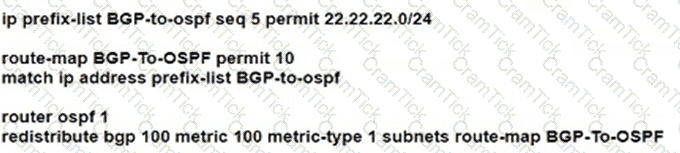

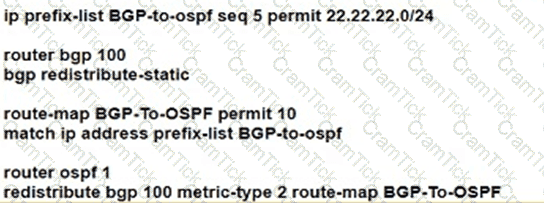

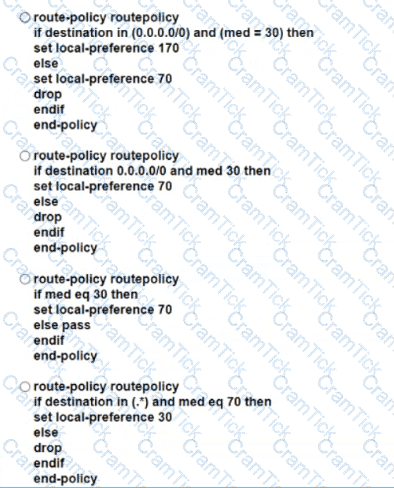

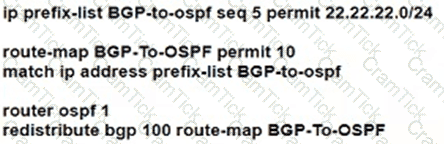

The task requires the engineer to configure a route map that permits all unmatched routes during router redistribution within BGP. The correct action is to remove the implicit deny entry at the end of the route map, as indicated in Option C. By default, route maps have an implicit deny at the end, meaning that if a route doesn’t match any of the permit or deny statements in the route map, it will be denied. Removing this implicit deny entry ensures that all unmatched routes are permitted. References := Implementing and Operating Cisco Service Provider Network Core Technologies

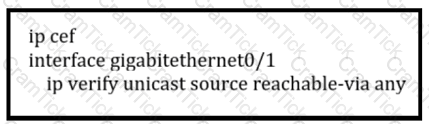

The configuration ip verify unicast source reachable-via any under interface gigabitethernet0/1 on Router 1 ensures that incoming packets have a source IP address that matches an entry in the FIB (Forwarding Information Base), indicating it’s reachable via a real interface. This helps mitigate attacks by dropping traffic with unreachable source addresses. References := Cisco

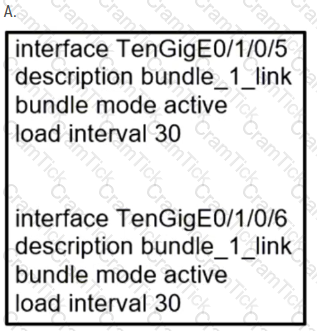

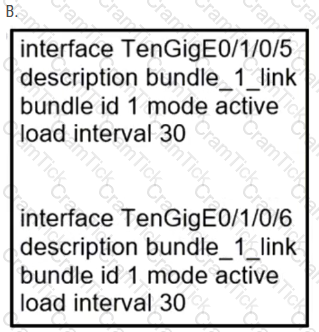

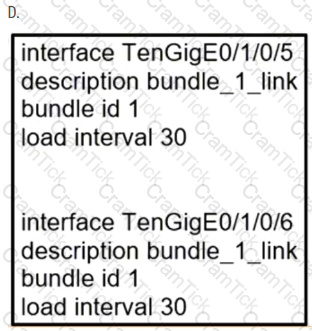

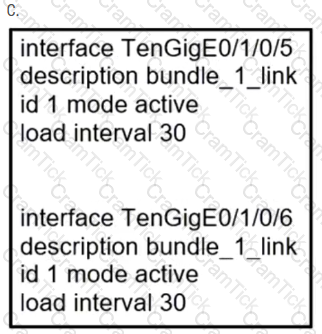

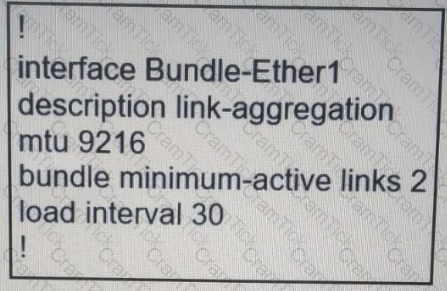

 In the context of Cisco IOS XR software, the configuration under Option D is appropriate for adding an interface to a bundle using LACP (Link Aggregation Control Protocol). The configuration specifies two Ten Gigabit Ethernet interfaces (TenGigE0/1/0/5 and TenGigE0/1/0/6) with descriptions indicating they are part of “bundle_1_link”. Both interfaces are assigned to “bundle id 1” with a load interval of 30 seconds, ensuring they are part of the same link aggregation group and share traffic load.

The mpls ldp graceful-restart command is applied in the global configuration mode in IOS XE Software. This command enables MPLS LDP Graceful Restart, which assists a neighboring router with MPLS LDP Stateful Switchover/Nonstop Forwarding (SSO/NSF) Support and Graceful Restart to recover gracefully from an interruption in service without losing its MPLS forwarding state1.

References: MPLS Configuration Guide, Cisco IOS XE 17.x1.

• https://www.cisco.com/c/en/us/support/docs/mpls-vpns/multiprotocol-label-switching-mpls/23986-mpls-vpns-config-example.html
• https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_l3_vpns/configuration/15-mt/mp-l3-vpns-15-mt-book/mp-bgp-mpls-vpns.html

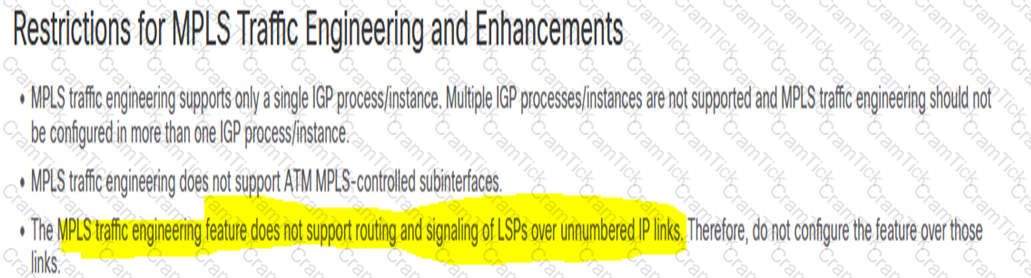

Cisco MPLS TE (Traffic Engineering) tunnels provide a way to optimize traffic routing within an MPLS network. However, there are certain constraints to be aware of:

• QoS-aware tunneling: Unfortunately, Cisco MPLS TE tunnels do not inherently support Quality of Service (QoS) awareness. This means that the tunnels themselves do not directly consider QoS parameters when making routing decisions. QoS policies must be applied separately at the network level, and the TE tunnels do not inherently take QoS into account during path selection.
• Tunnels spanning multiple OSPF areas: Contrary to option A, Cisco MPLS TE tunnels can indeed span multiple OSPF areas. The use of OSPF areas does not inherently restrict the creation of MPLS TE tunnels across area boundaries.

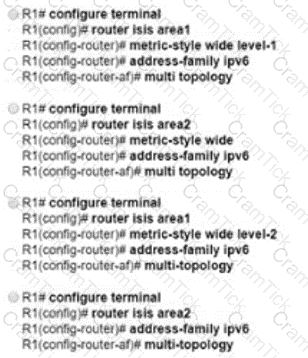

• ISIS metrics: Option B is incorrect. When using ISIS (Intermediate System to Intermediate System) as the Interior Gateway Protocol (IGP), newer-style metrics (such as wide metrics) are supported. Older-style metrics are not the only option.
• Tunnels over IP unnumbered links: Option C is also incorrect. Cisco MPLS TE tunnels can be configured over IP unnumbered links, allowing efficient use of IP addresses.

In summary, the primary constraint is the lack of built-in QoS awareness within MPLS TE tunnels.

References:

• Implementing an MPLS VPN over TE Tunnels - Cisco Support
• Configuring Basic MPLS TE - Cisco NX-OS

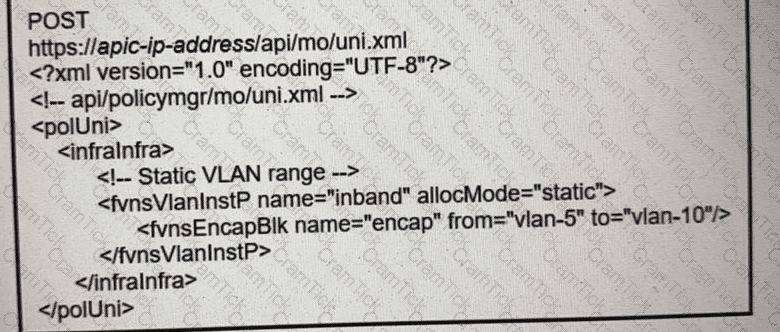

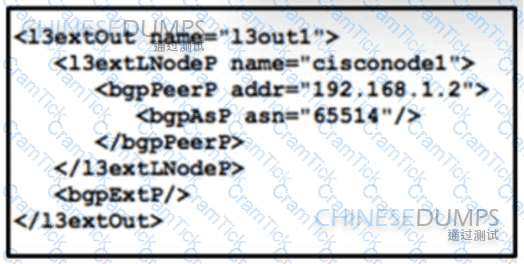

The URL in the exhibit is used with REST API to send a message to the APIC (Application Policy Infrastructure Controller) to perform an operation on a managed object or class operator. In Cisco’s ACI (Application Centric Infrastructure), REST API requests are used for managing, configuring, and retrieving data from the APIC. The URL structure typically includes the IP address of the APIC and specific paths that refer to objects or classes within the ACI fabric. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

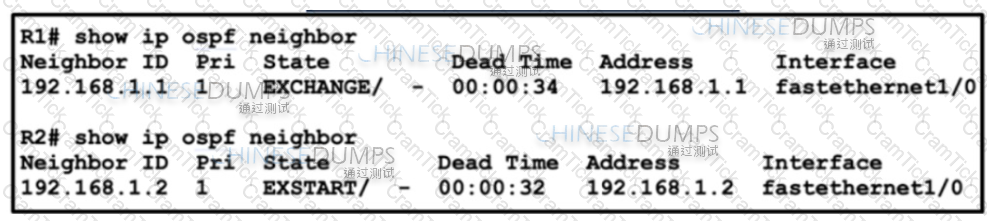

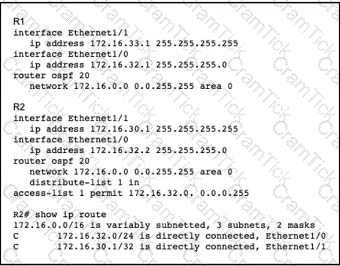

The OSPF adjacency issue between R1 and R2 is likely due to mismatched OSPF network types or hello/dead interval settings. The command ip ospf network point-to-point is used on point-to-point network types, which do not require matching hello/dead intervals, thus allowing OSPF adjacency to form even if these intervals are mismatched on the two routers. References: = Implementing and Operating Cisco Service Provider Network Core Technologies course materials. (

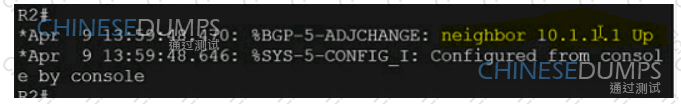

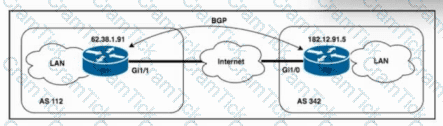

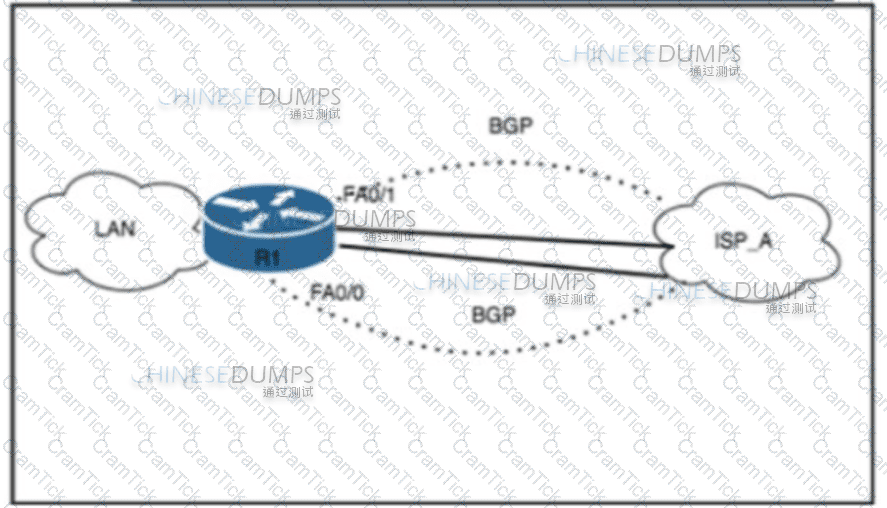

The configuration for R1 indicates a BGP neighbor relationship with a device in AS 65012. However, R2 is actually in AS 65000, leading to a mismatch in AS numbers. This discrepancy will prevent the establishment of a BGP neighbor relationship between R1 and R2.

The correct configuration for enabling BGP FlowSpec client function and installation of policies on all local interfaces is flowspec address-family ipv4 install interface-all local. This command configures the router to accept FlowSpec policies from a BGP peer and apply them to all local interfaces. The flowspec keyword enables the BGP FlowSpec client function, address-family ipv4 specifies the address family, and install interface-all local ensures that the policies are installed on all local interfaces. References := Implementing and Operating Cisco Service Provider Network Core Technologies course.

 YAML’s readability and straightforward syntax make it an ideal choice for expressing infrastructure as code, which is a core principle in both Ansible and SaltStack for automating and managing IT infrastructure.

References: For more detailed information, please refer to the official documentation for Ansible and SaltStack, as well as the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials.

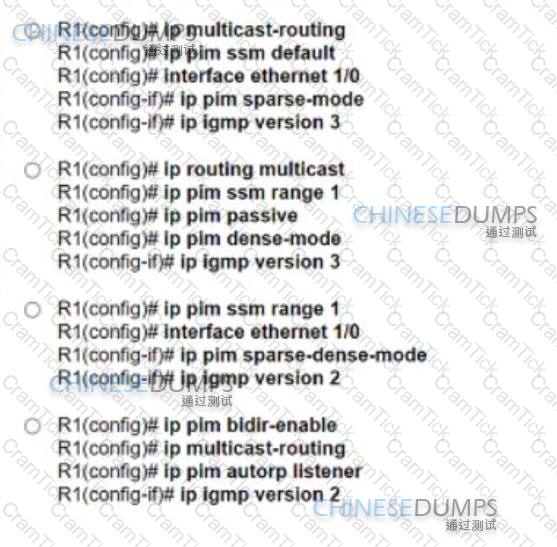

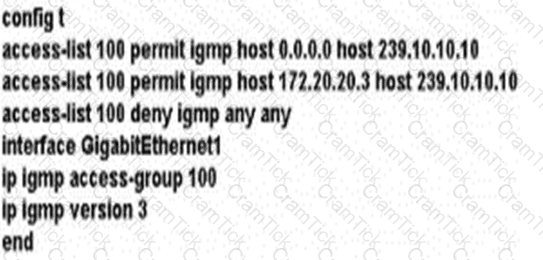

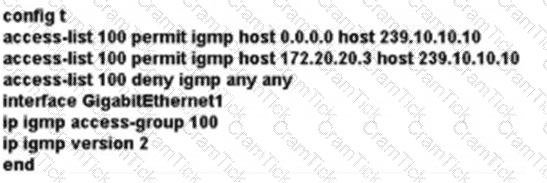

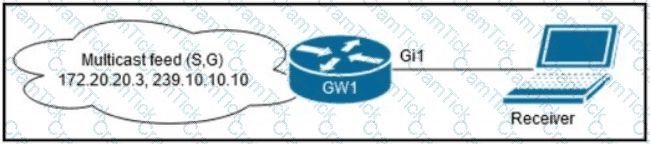

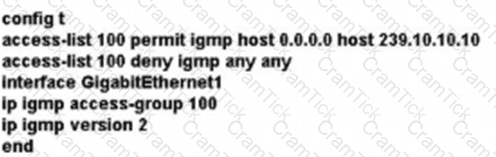

 To implement a PIM-SSM (Protocol Independent Multicast - Source Specific Multicast) configuration for streaming live traffic across different domains, the network operator must ensure that IGMPv3 (Internet Group Management Protocol version 3) is enabled on R1. IGMPv3 is required for SSM because it allows the receiver to specify the source IP address of the desired traffic, which is a key feature of SSM. The operator would configure IGMPv3 on the interfaces that connect to the users who will be accessing the multicast stream. Additionally, PIM-SSM must be enabled on the router, and the multicast sources and groups must be properly defined.

References: The explanation is based on the concepts outlined in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course

 In XML, a self-closing tag such as  indicates that the element does not contain any data, hence the data field is considered blank. This is a common way to represent empty elements in XML documents.

References: For further details, you can refer to XML-related sections in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) materials, which explain the structure and usage of XML in network configurations.

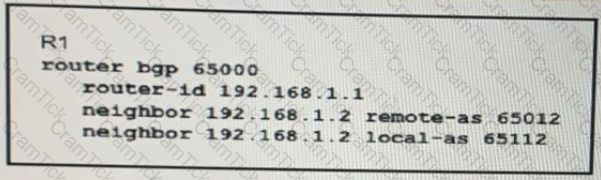

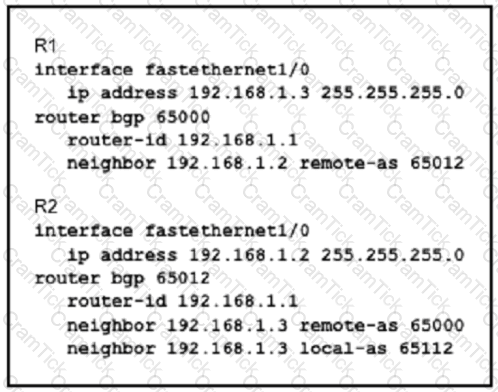

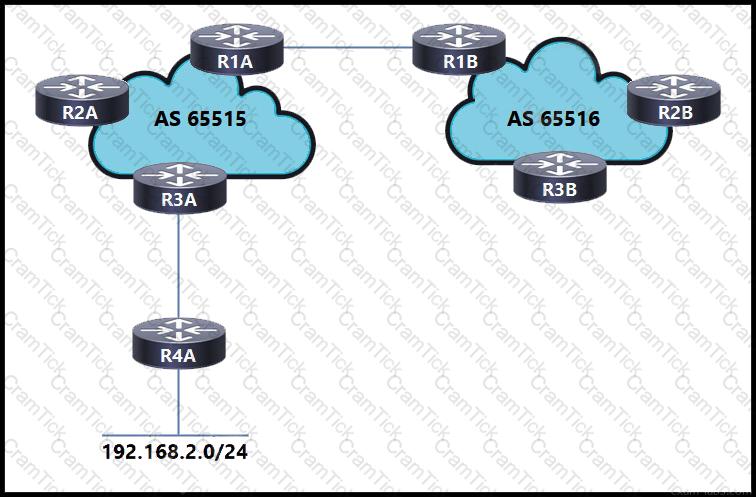

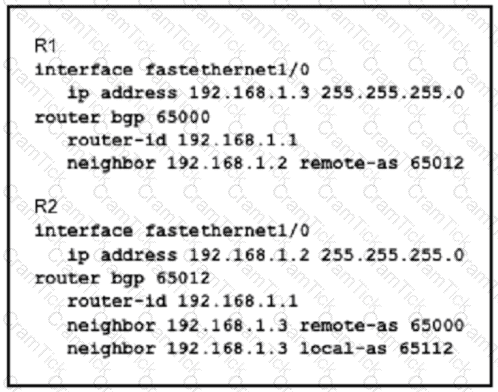

 The local-as keyword is used in BGP configurations to change the local AS number that is used in the BGP OPEN message when establishing a BGP session with a specific neighbor. In this case, even though the router is configured with AS 65000, it will use AS 65112 when establishing a connection with neighbor 192.168.1.2 due to the local-as keyword configuration. References := Cisco

https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/13761-39.html

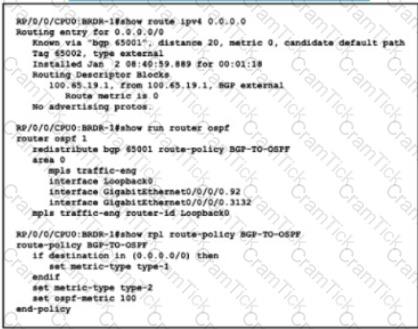

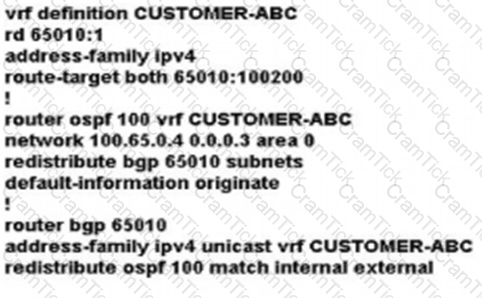

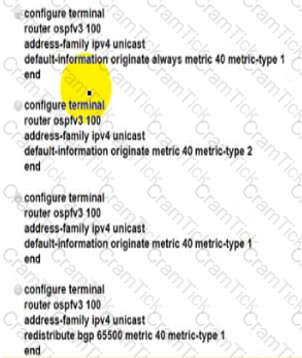

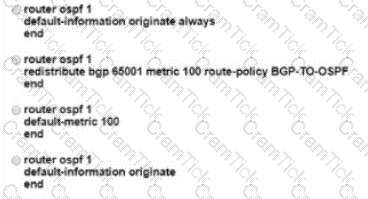

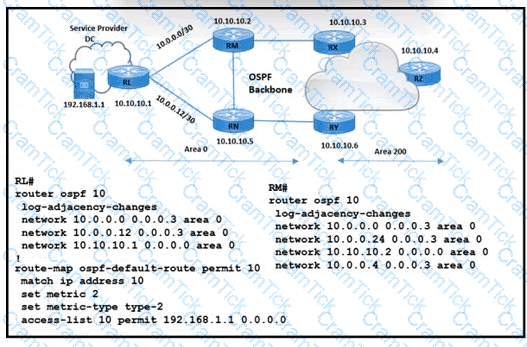

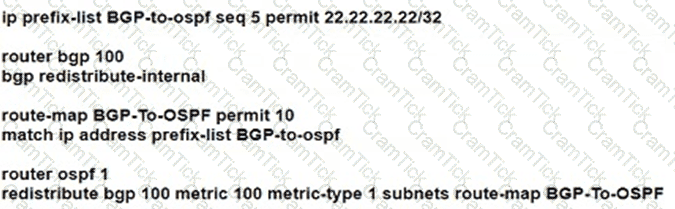

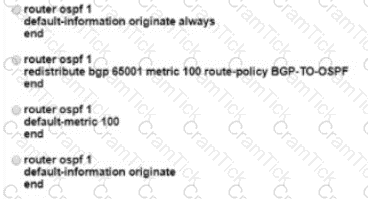

The issue of the OSPF domain receiving only the 172.17.1.0/24 route and not the default route 0.0.0.0/0 can be resolved by configuring OSPF to propagate default routes. Let’s take a look at the options:

• Option A: The configuration includes the following commands:
• router ospf 1
• default-information originate
• end

This configuration generates a default route into the OSPF domain, which is missing in this scenario.

Here is the solution:

Text Description automatically generated

The issue with establishing an IS-IS adjacency between the two routers stems from a mismatch in the configuration of their interfaces. Router R2’s interface is set to point-to-point, while the peer router interface is set to multipoint. For IS-IS adjacencies to form, both interfaces must be configured with the same network type. The discrepancy in the network types is preventing the adjacency from being established. To resolve this, the network operator must ensure that both interfaces are either configured as point-to-point or as multipoint. References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

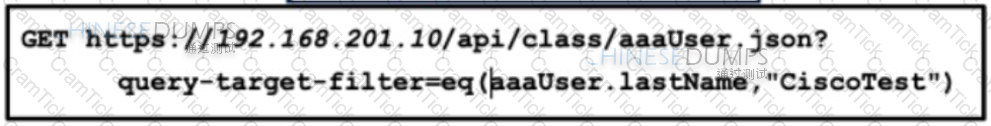

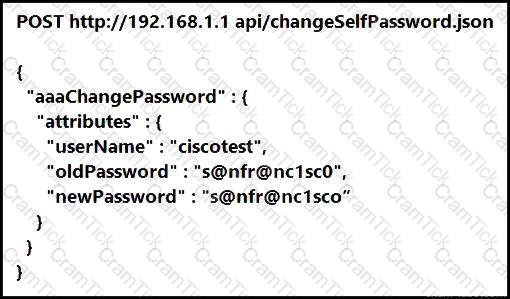

The script shown in the exhibit is a REST API call that adds a user with the last name ‘CiscoTest’ to the AAA database on the server located at the IP address 192.168.201.10. This is achieved through a POST request, which is typically used to create or update resources on a server. The script specifies the user details in JSON format, which is a common data format used for API calls.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

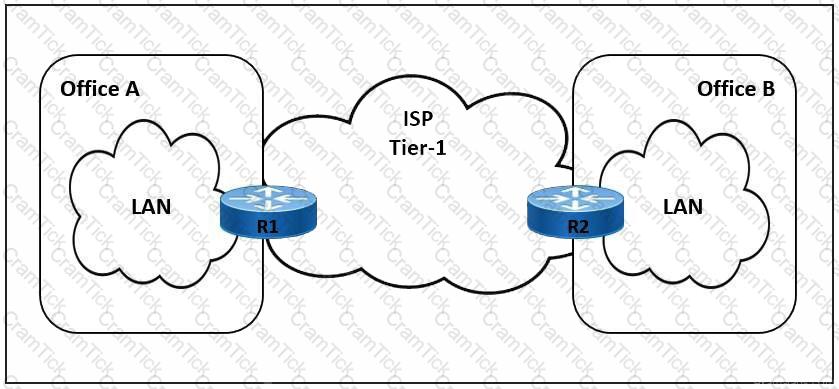

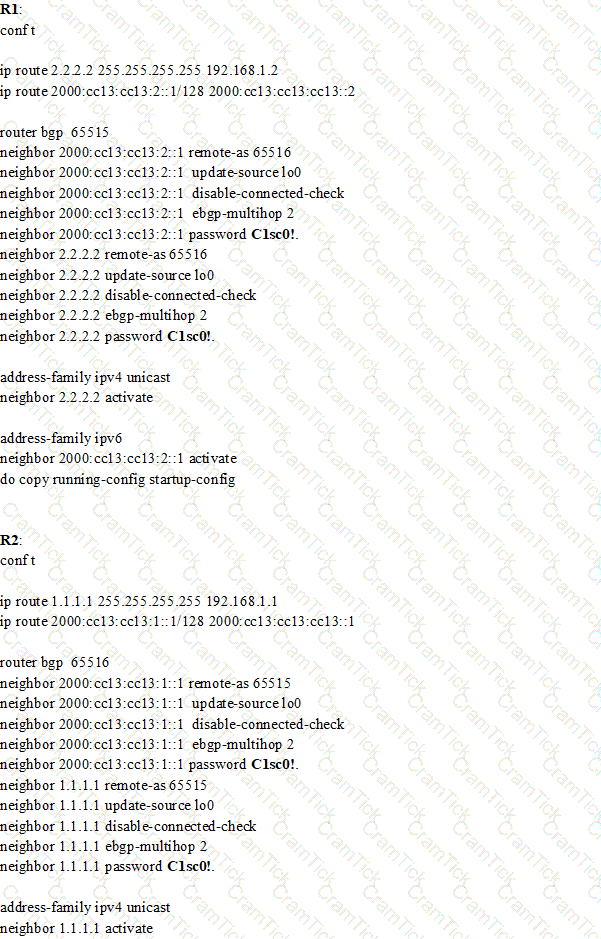

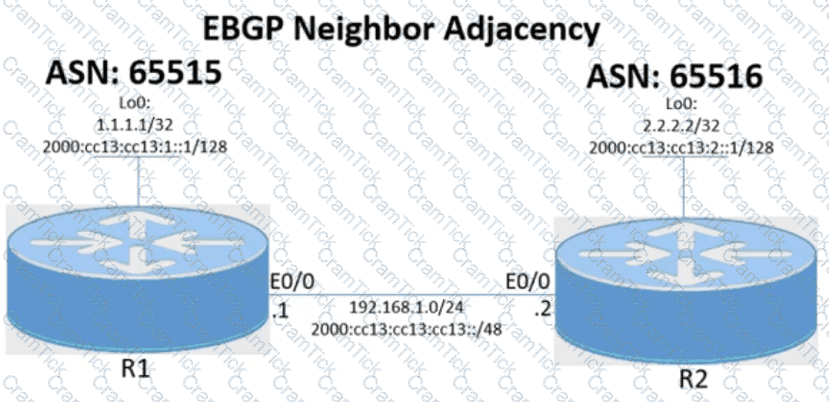

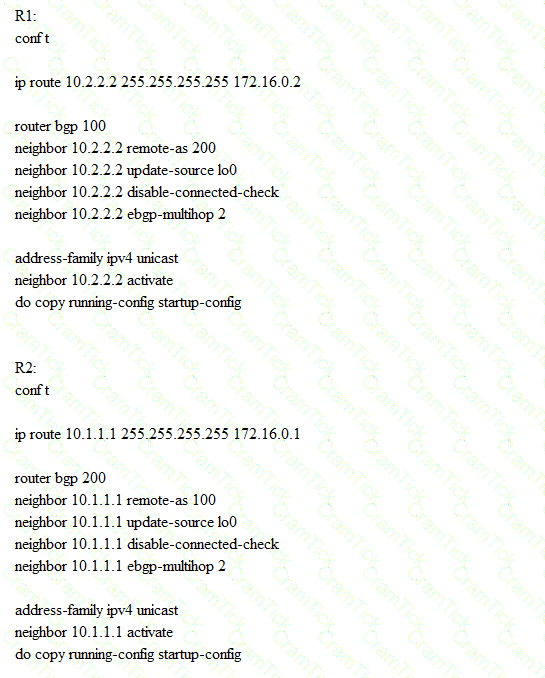

R1

R2

https://www.cisco.com/c/en/us/support/docs/quality-of-service-qos/qos-policing/19645-policevsshape.html

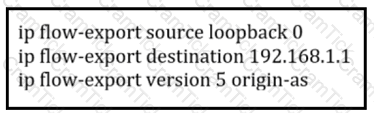

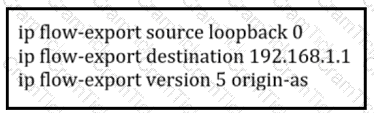

NetFlow version 9 can report additional information such as BGP Autonomous System (AS) information due to its template-based design, which allows for flexibility and support for a wider range of IP flow information, including IPv4 and IPv6 flow information, BGP routing information, and multicast flow data.

 RSVP (Resource Reservation Protocol) is used in MPLS Traffic Engineering (TE) tunnels to establish and maintain paths within the core network. It helps in reserving resources across an IP network and plays a crucial role in ensuring that the network can handle the traffic load efficiently, providing optimal data transfer paths while maximizing network resource utilization and quality of service. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

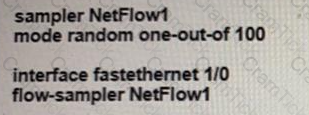

Flexible NetFlow improves on traditional NetFlow by providing more flexibility and efficiency in collecting and analyzing network flow data. In this specific configuration, the “mode random one-out-of-100” command is used, which means that only one out of every 100 packets is sampled. This leads to reduced CPU and memory utilization (Option A) because fewer packets are being processed. Additionally, because fewer packets are being analyzed (only one out of every 100), the number of packets to be analyzed is significantly reduced (Option D), leading to further efficiencies.

References :=

• Implementing and Operating Cisco Service Provider Network Core Technologies
• On-Demand E-Learning

When creating new Cisco MPLS TE tunnels, the headend router sends a Path message to reserve bandwidth on the path to the tunnel’s tailend router. The Path message is part of the RSVP (Resource Reservation Protocol) used in signaling and establishing MPLS TE tunnels. It carries information about the requested resources and desired parameters for the tunnel123. References: Configuring MPLS TE RSVP, MPLS TE RSVP-TE, MPLS TE Theory.

During the traceback phase of the six-phase approach to service provider security, the action that occurs is tracing the attack flows from the attacked sections of the network toward the network edges. This phase entails identifying the source of the attack by analyzing the path that the attack traffic has taken through the network.

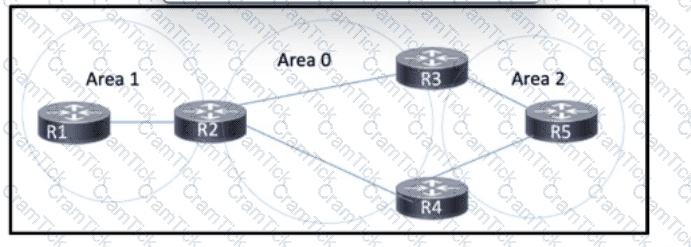

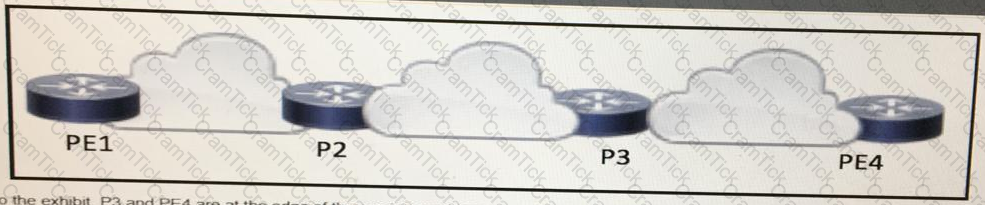

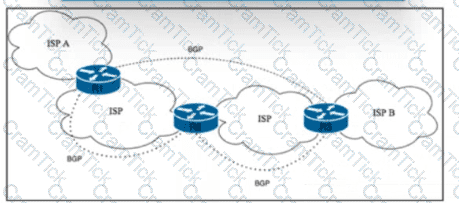

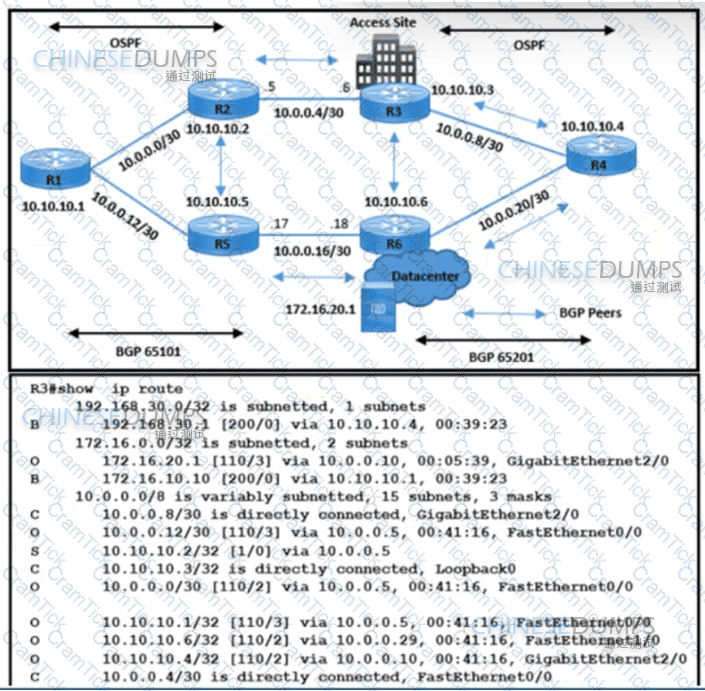

In the given architecture, if each area is running its own Interior Gateway Protocol (IGP), Border Gateway Protocol (BGP) must be used to provide an end-to-end Multiprotocol Label Switching (MPLS) Label Switched Path (LSP). This ensures that data packets can traverse through the different IGP areas seamlessly, maintaining connectivity across the entire network.

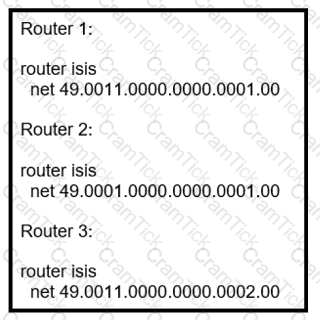

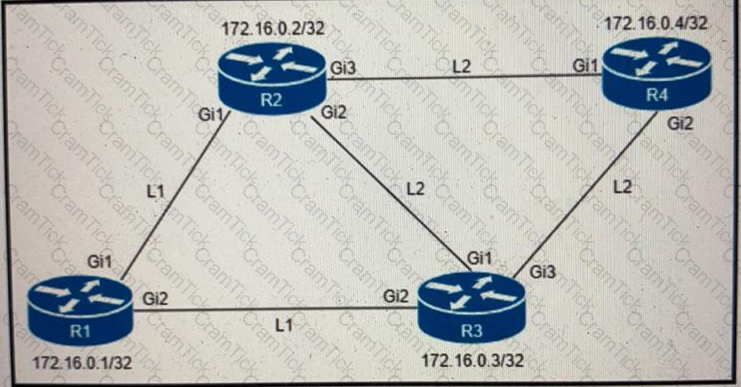

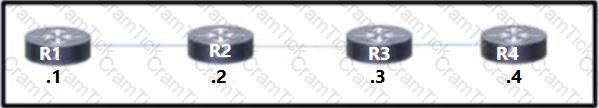

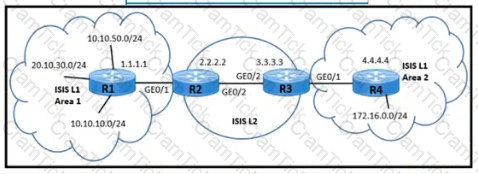

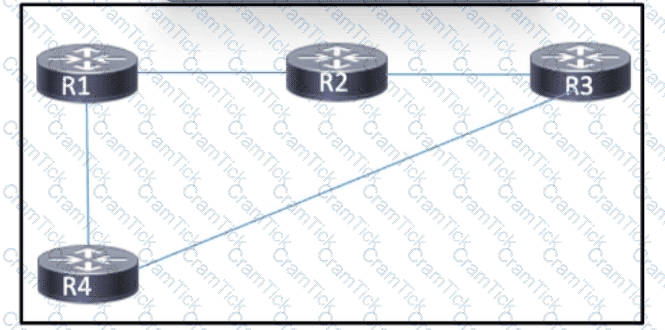

Router 4 must be in the same area as Router 1, so it should have the same area address which is “49.0111”. The system ID can be different to uniquely identify the router in that area, but since there is no option with a different system ID and the same area address, option B is correct as it has both the same area address and system ID as Router 1. References := Cisco

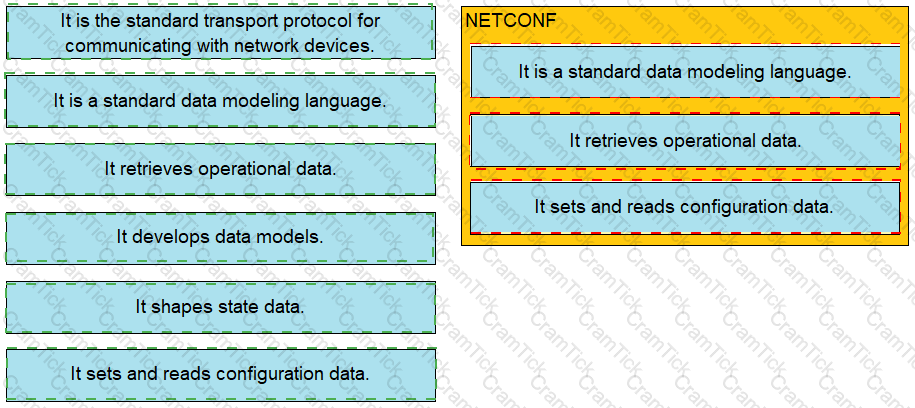

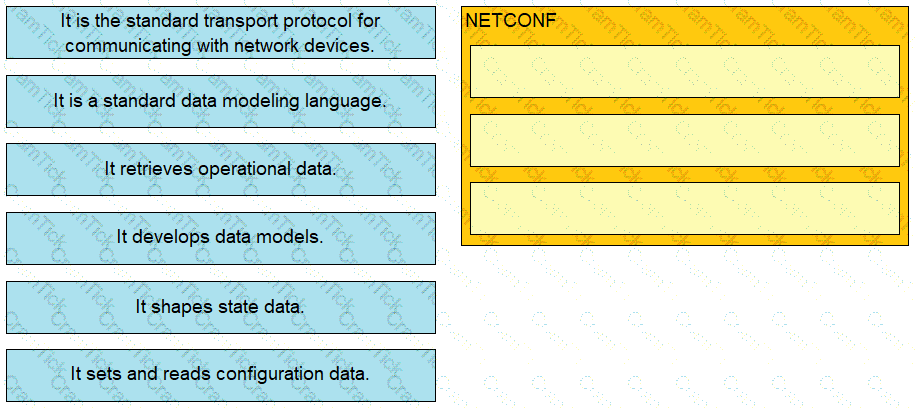

• https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/prog/configuration/166/b_166_programmability_cg/netconf_programmability_configuration_guide.html
• https://tools.ietf.org/html/rfc6241

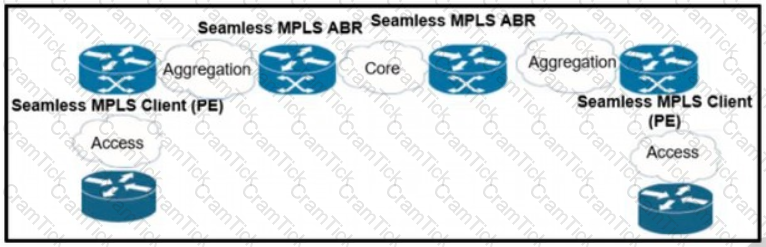

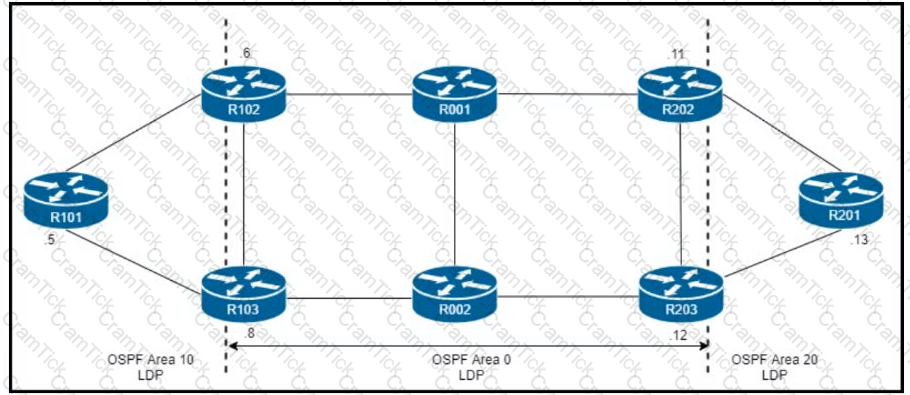

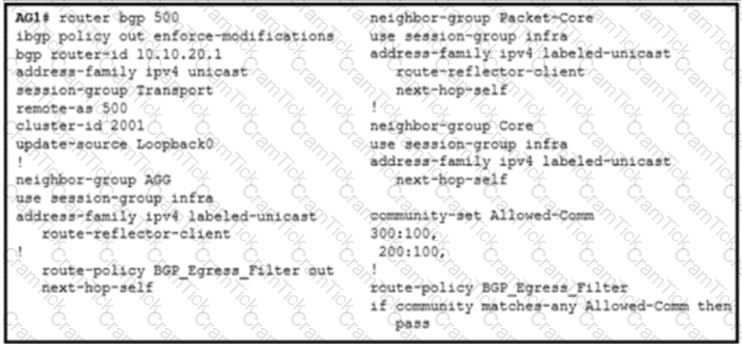

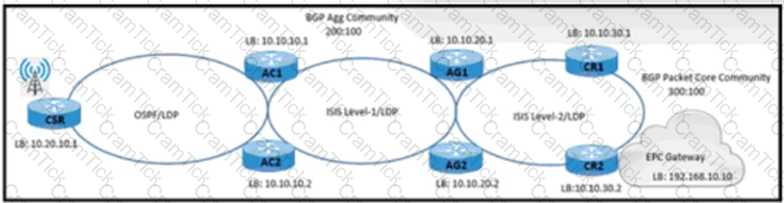

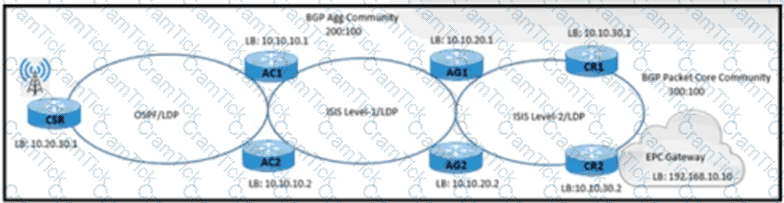

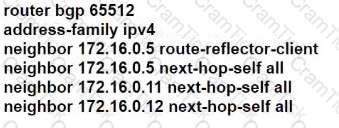

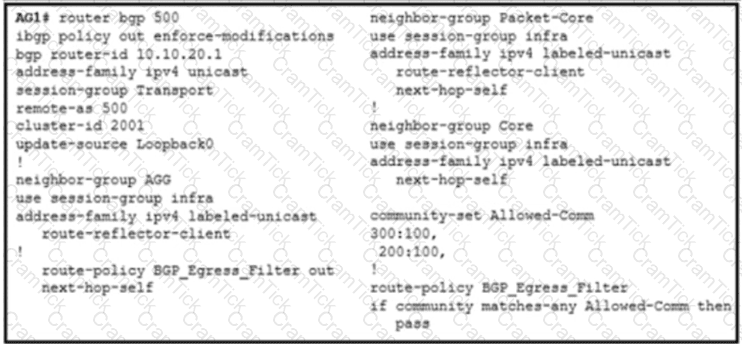

 In a Unified MPLS routing architecture with partitioned IGP domains, it is essential to ensure that the iBGP Labeled Unicast address families are correctly configured to facilitate the exchange of VPNv4 routes directly between PE routers. In this case, ABR R102 should be configured with the address family-level configuration depicted in Option A to support this architecture. This configuration ensures that R101 can peer with both R102 and R103, and similarly, R201 can peer with R202 and R203 using iBGP Labeled Unicast address families. References := Implementing and Operating Cisco Service Provider Network Core Technologies

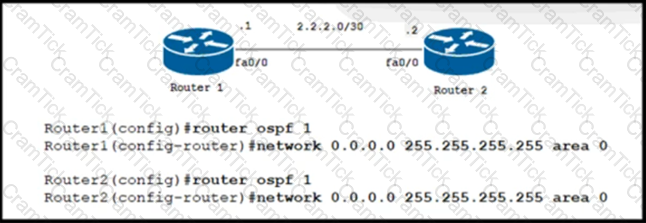

 In OSPF, for two routers to establish communication, they must have the same key ID and key value on their interfaces. This ensures secure communication between the OSPF peers. The key ID and value are part of the OSPF authentication mechanism that helps in validating the identity of OSPF peers before exchanging routing information. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training & Certification

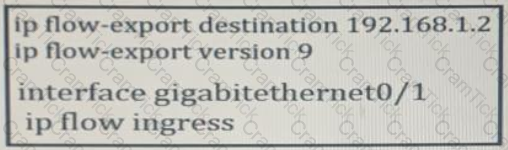

The configuration shown in the exhibit enables IP flow information collection on the interface gigabitethernet0/1. This setup is used for network traffic analysis, and when applied, it provides data that includes the source interface of the traffic for traceback analysis. This is useful for identifying the origin of traffic, which can be critical in situations such as security incidents or network troubleshooting.

References: The details for this configuration can be found in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials, which serve as a comprehensive guide for understanding and applying Cisco service provider technologies.

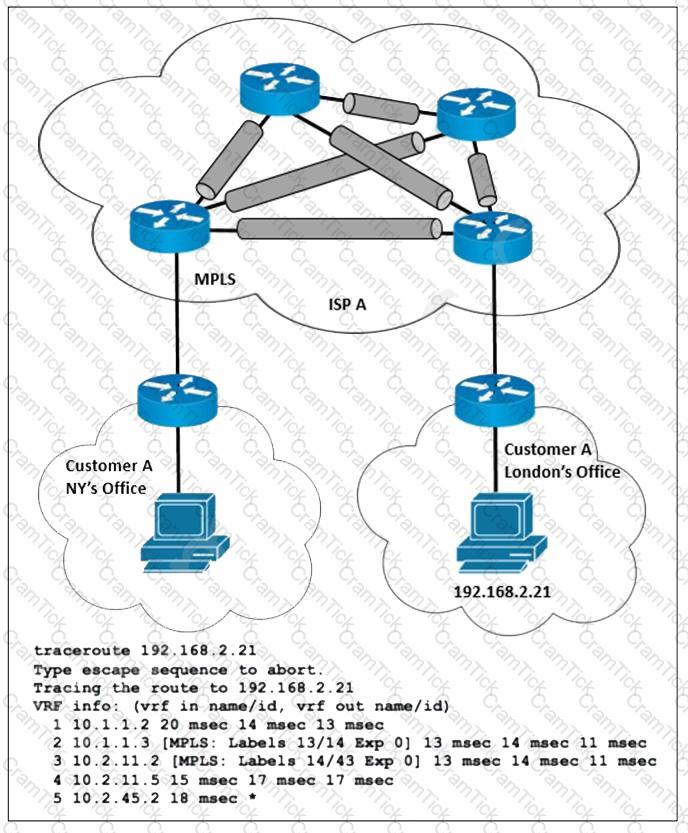

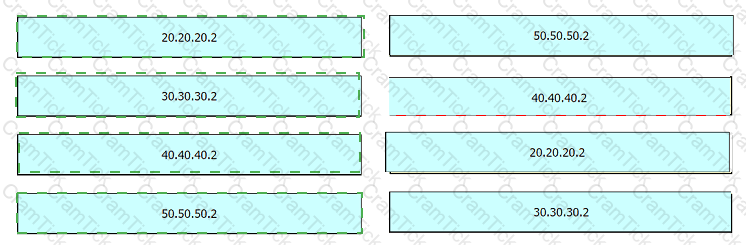

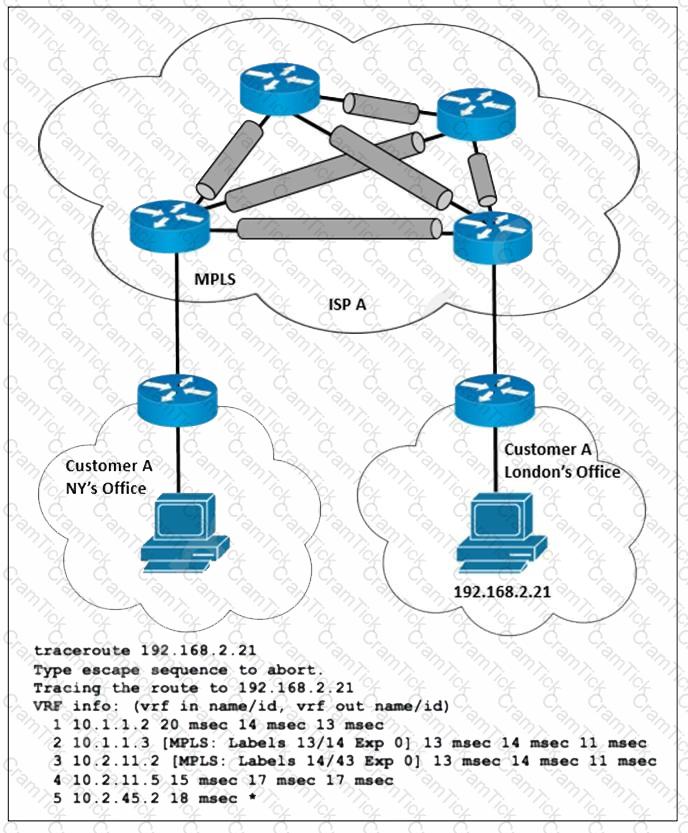

Using verbose knob in above command will list all the hops as below: R1#traceroute mpls multipath ipv4 10.1.5.5 255.255.255.255 verbose https://www.cisco.com/c/en/us/support/docs/multiprotocol-label-switching-mpls/multiprotocol-label-switching-mpls/200097-MPLS-LSP-Multipath-Trace.html

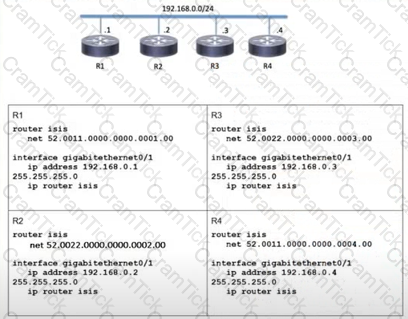

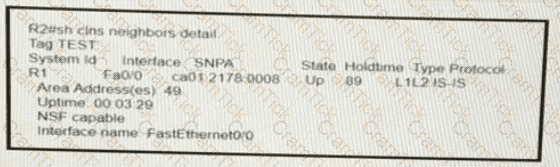

In ISIS, routers can form neighbor relationships even with different system IDs, provided they are configured to be in the same area and the authentication between them is correctly set up.

References: For the most accurate answer, please consult the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials and the official Cisco documentation on ISIS configuration.

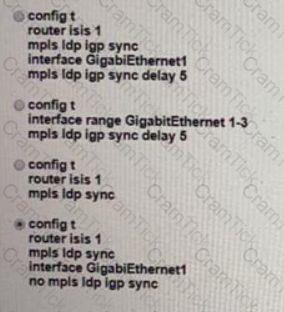

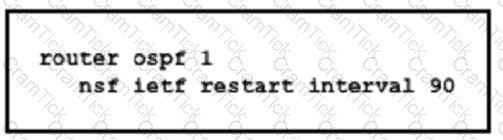

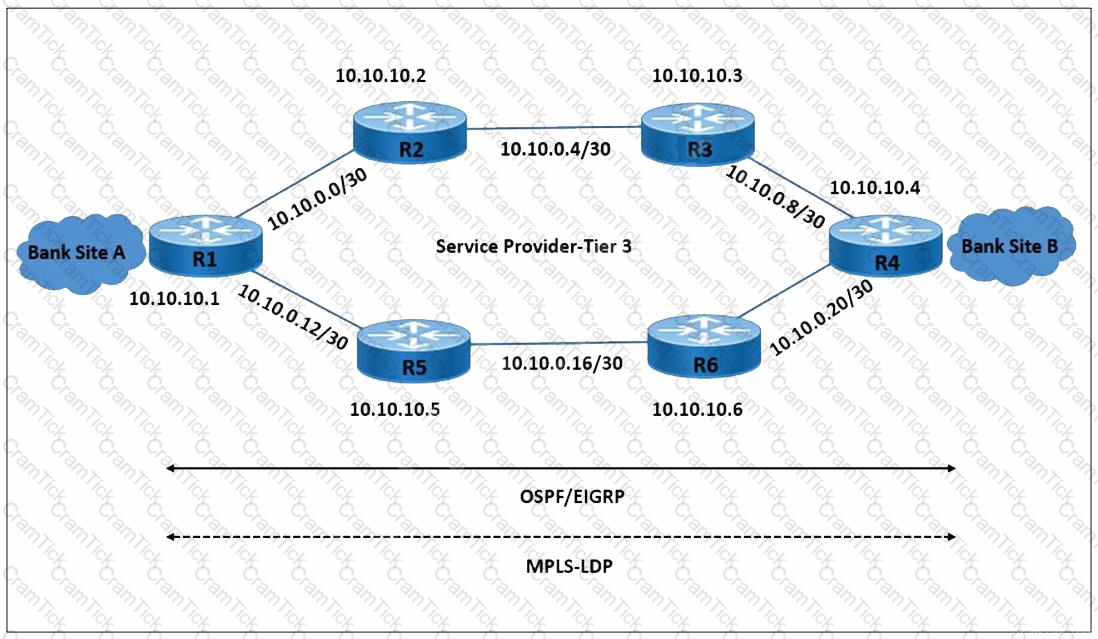

When implementing LDP NSF on your network, enabling NSF for the link-state routing protocol in use on the network is essential to ensure continuous forwarding of packets during a failure scenario. Additionally, enabling NSF for BGP ensures that BGP sessions are not dropped during a switchover, maintaining network stability and uptime.

 Implementing CSC VPN services for a new backbone carrier provides several benefits. Firstly, it maintains a single backbone network, which simplifies the VPN implementation to customers (A). This eliminates the need for each Level 2 carrier to create and maintain a separate backbone network, thus lowering maintenance costs and simplifying management operations. Secondly, it supports a scalable growth strategy that services multiple customers efficiently (D). The Level 1 carrier can use one backbone network to provide VPN and Internet services for multiple Level 2 carriers, increasing revenues and efficiency.

References: The benefits of implementing CSC VPN services are detailed in the Huawei IP Encyclopedia, which explains the Carrier’s Carrier (CSC) networking solution in BGP/MPLS IP VPN2.

Wavelength-division multiplexing (WDM) is a technology which multiplexes a number of optical carrier signals onto a single fiber [1], using different wavelengths of light to carry different signals. This allows for a greater capacity for data transfer and enables the addition of new wavelengths in a fiber-optic network

 The command “show mpls traffic-engineering tunnels” is used to quickly check the path of a TE (Traffic Engineering) tunnel in a Cisco MPLS core network. This command provides detailed information about each TE tunnel, including its current operational status, configuration details, and the specific path it is taking through the network. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

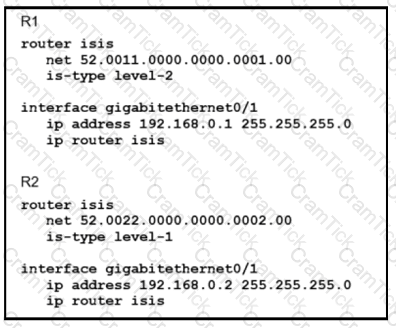

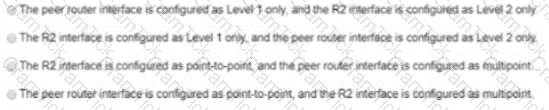

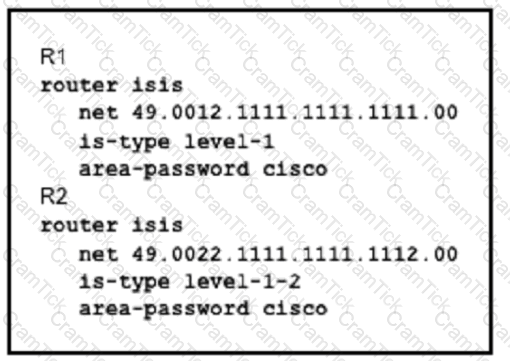

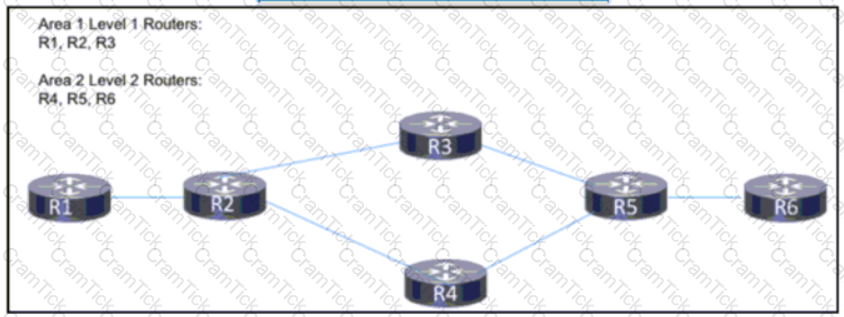

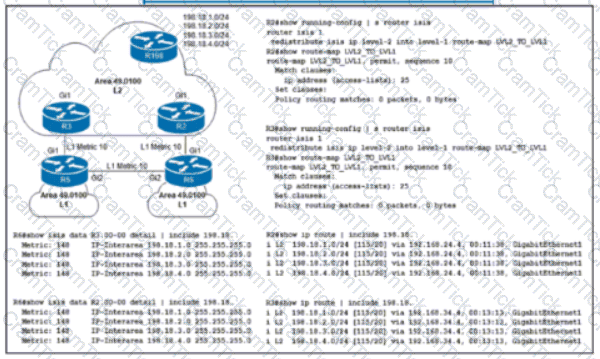

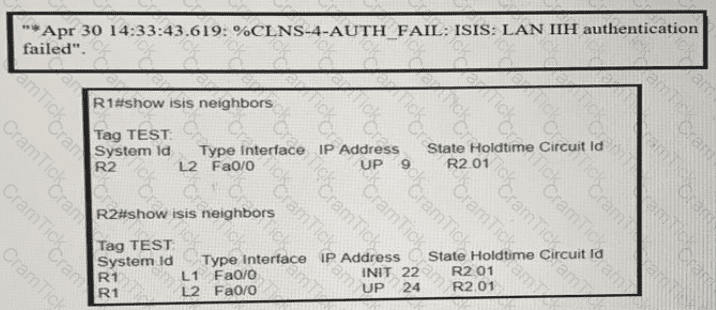

The neighbor relationship is down because R2 is operating as a Level 1 router and the two routers are in different areas. In the IS-IS (Intermediate System to Intermediate System) protocol, Level 1 routers exchange routing information with other Level 1 routers in the same area, while Level 2 routers exchange information between areas. Since R1 is configured as a level-2 router and R2 as a level-1 router, they cannot form a neighbor relationship if they are not in the same area. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

• Configure an IP domain name: An IP domain name is essential for generating RSA keys needed for SSH. The RSA keys are part of the crypto key configuration, which is necessary to enable SSH on the router. This step ensures that users are authenticated via the SSH protocol when accessing the network remotely.
• Configure crypto keys: The crypto keys are crucial for secure communication. The engineer should generate RSA keys using the configured IP domain name. These keys will be used for encryption and authentication during SSH sessions.

The other options (B, D, and E) are not directly related to completing the SSH configuration for secure remote access. Therefore, the correct answers are A and C.

References:

• Implementing and Operating Cisco Service Provider Network Core Technologies

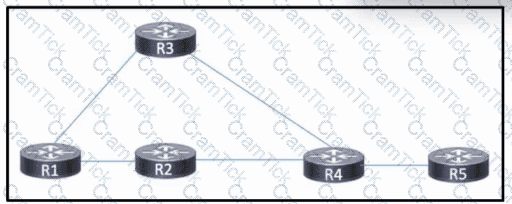

MPLS TE FRR (Fast ReRoute) provides backup protection by creating a bypass LSP for each protected LSP at each point of local repair. This method allows for rapid switching to the backup path in case of a failure, minimizing traffic loss and disruption.

References :=

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials.

• References: Implementing and Operating Cisco Service Provider Network Core Technologies

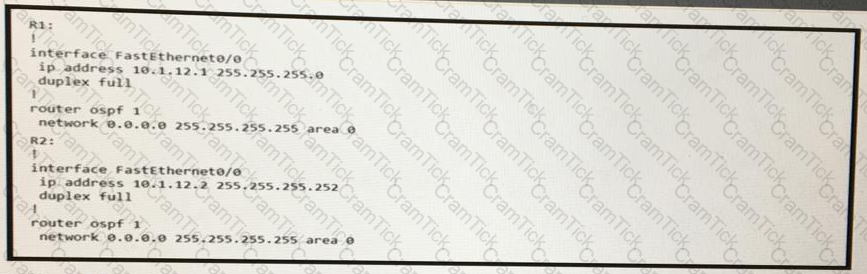

 For OSPF, the subnet mask must match between two devices on the same network segment to form an adjacency, as it defines the network’s address range. The hello timer setting is crucial for the OSPF Hello protocol, which is used for neighbor discovery and maintaining neighbor relationships. Finally, the area number must be the same because OSPF uses areas to define a hierarchy within the network, and routers within the same area share routing information.

References: OSPF is a link-state protocol that requires certain parameters to match for a successful adjacency. This includes the subnet mask, hello timer, and area number, which are fundamental to OSPF’s operation and ensure that routers can communicate effectively within the same area

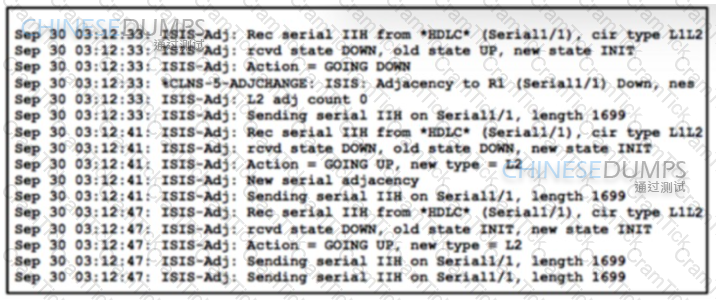

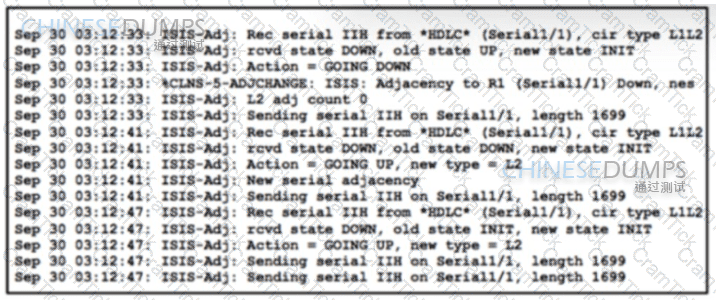

The disruption in IS-IS connectivity between R1 and R2, despite the interfaces being up, suggests an issue with packet handling or MTU configuration. Action A, disabling padding for hello packets under the serial interface on R2, is necessary because excessive padding can lead to issues in processing hello packets effectively. Action C, changing the MTU to 1500 bytes on R2, addresses potential MTU mismatch issues. MTU mismatches are common problems that can interrupt connectivity in networks using routing protocols like IS-IS; ensuring both routers operate at the same MTU can resolve this issue.

References := The explanation is derived from the principles outlined in Cisco’s Implementing and Operating Cisco Service Provider Network Core Technologies, which emphasizes the importance of proper packet handling and MTU configuration for maintaining IS-IS connectivity.

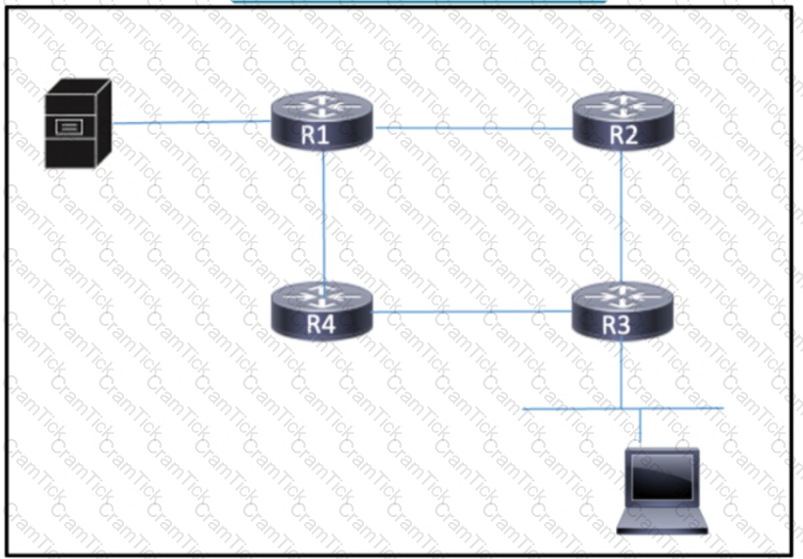

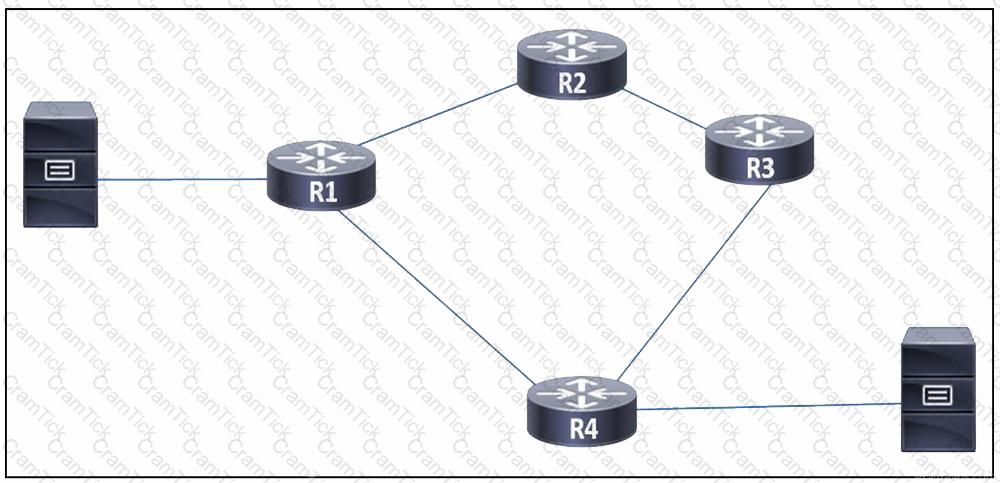

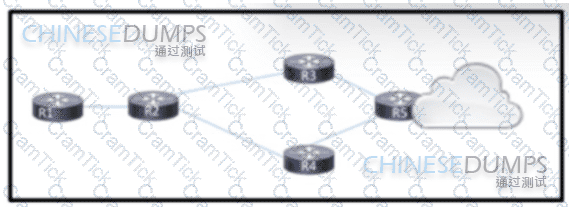

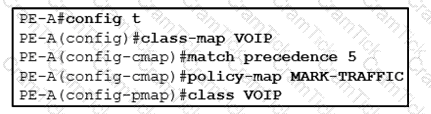

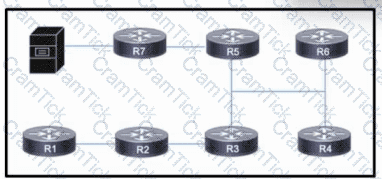

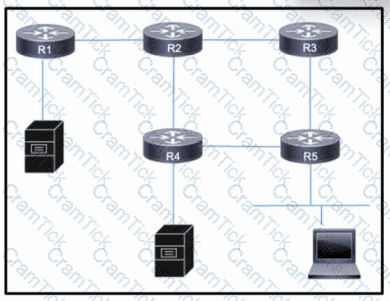

To ensure that critical, time-sensitive data from the server on R1 to the host on R3 is always prioritized, especially during congestion, the network engineer should implement a Quality of Service (QoS) strategy that uses strict priority queuing. This QoS mechanism ensures that traffic marked as high priority is transmitted first, while other traffic may be queued or dropped if necessary. Strict priority queuing is designed for scenarios exactly like this, where certain traffic must be guaranteed bandwidth to meet time-sensitive requirements. References := For more detailed information on QoS strategies and classification, refer to the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials, specifically the sections discussing QoS mechanisms and their implementation in service provider networks. Additionally, Cisco’s official documentation on QoS provides comprehensive guidelines on configuring and applying strict priority queuing to ensure bandwidth for critical traffic.

https://www.cisco.com/c/en/us/support/docs/multiprotocol-label-switching-mpls/mpls/215215-segment-routing -overview-and-migration-g.html

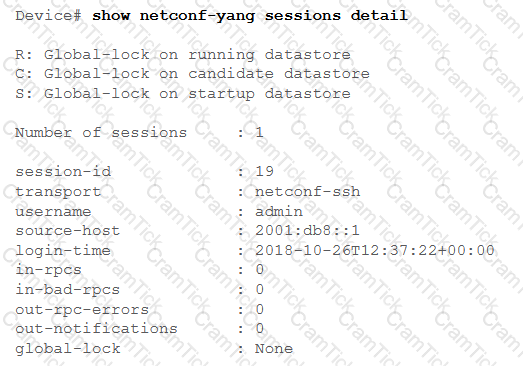

To view login history for users who activated a session, the network administrator can use the show netconf-yang sessions command. This command provides information about active NETCONF/YANG sessions, including the login times for each user.

References:

• Cisco Community - Any command to see login history using CLI
• WinTips.org - How to View User Login History in Windows 10/11
• nixCraft - Linux Display Date And Time Of Login

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/prog/configuration/167/b_167_programmability_cg/configuring_yang_datamodel.html

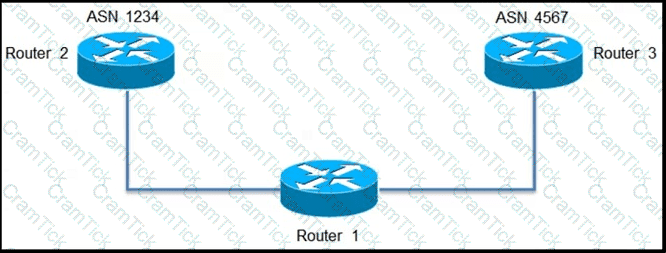

The configuration shown indicates that Router 1 is set up with a route-map named “ddos” that matches traffic tagged with “tag 1”. The traffic matching this tag is then set to have a next-hop IP of 192.0.2.1 and a local preference of 150. The community is also set to “no export”, which means this route will not be advertised to external BGP peers. Since there’s no explicit deny statement in the configuration, only traffic with tag 1 and local preference of 150 will be dropped by Router 1 as per the BGP routing policy. References: Implementing and Operating Cisco Service Provider Network Core Technologies course materials.

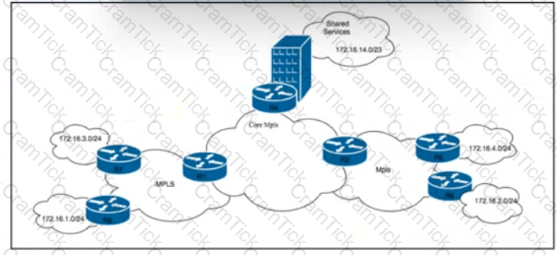

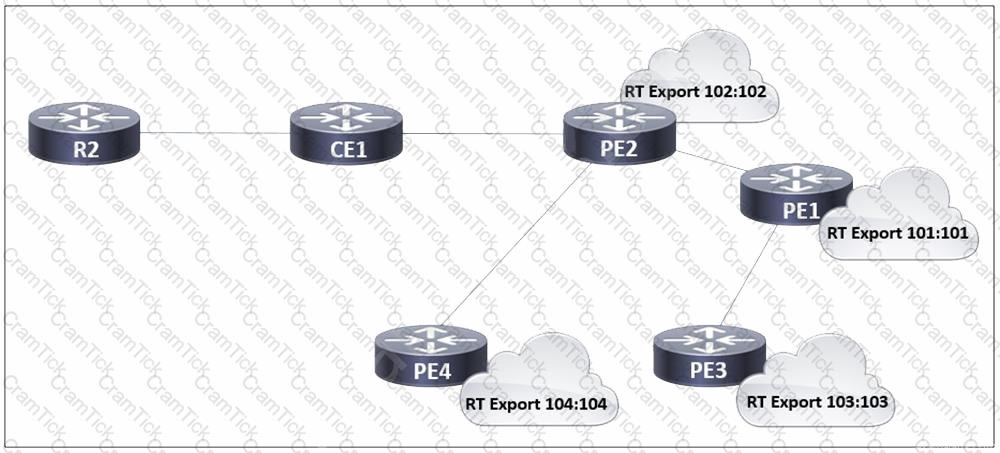

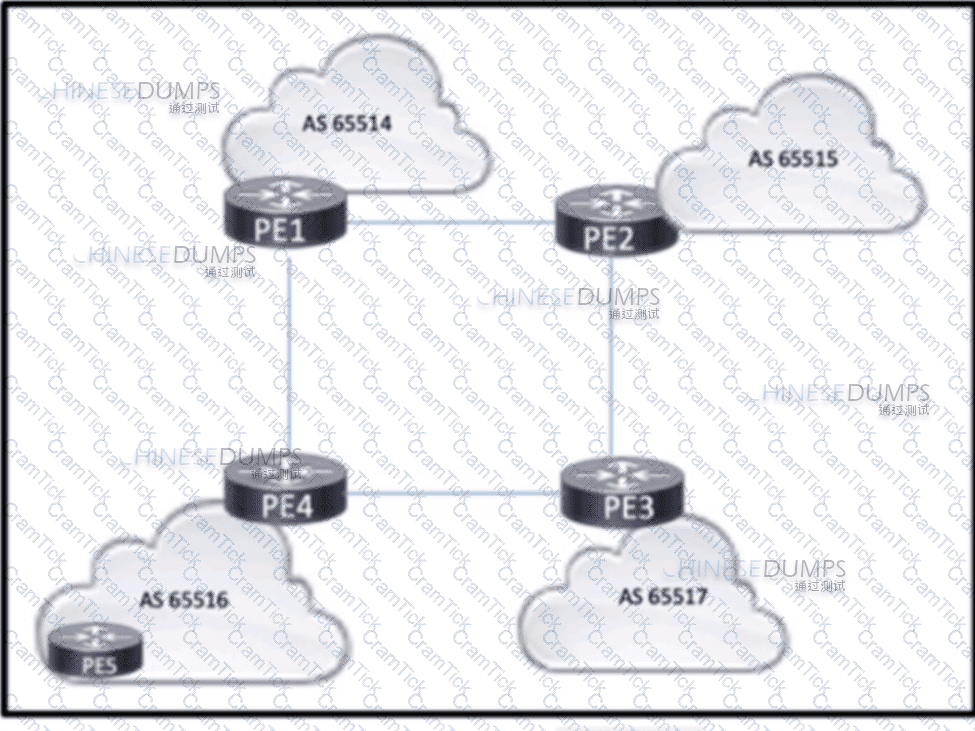

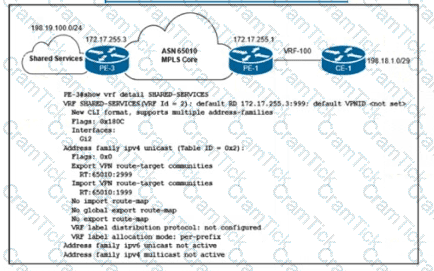

In MPLS Layer 3 VPNs, shared services such as Internet access can be provided through the use of a shared services VRF (Virtual Routing and Forwarding). The customer VRF uses route targets to import routes from the shared services VRF, which contains the routes to the Internet. This allows the customer sites to access the Internet without compromising the isolation of their private networks. References: The concept of shared services VRF and the use of route targets for importing and exporting routes are common practices in MPLS VPN implementations.

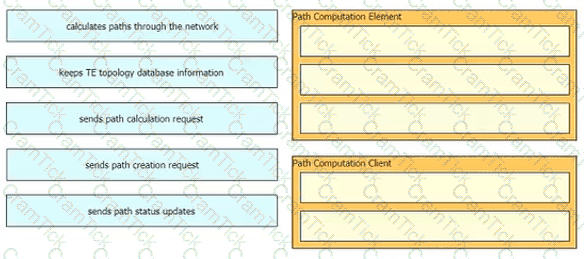

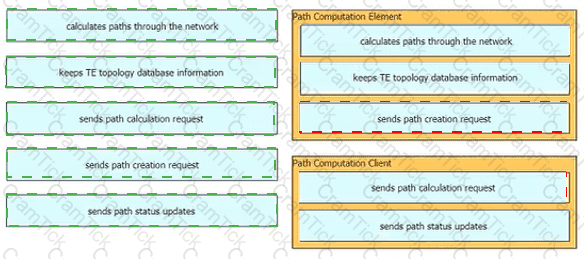

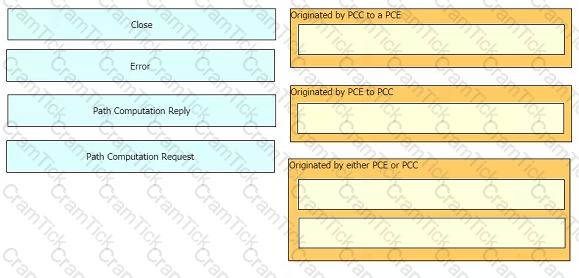

•  The PCE (Path Computation Element) communicates with the PCC (Path Computation Client) using the PCEP. PCEP is responsible for path computation and signaling in MPLS networks.
• References: Implementing and Operating Cisco Service Provider Network Core Technologies course materials.

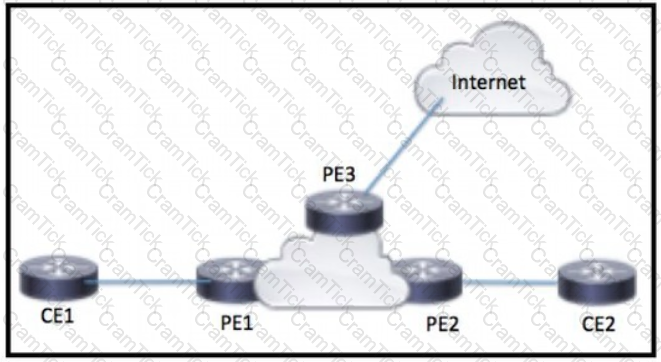

In this scenario, CE1 and CE2 need connectivity to the internet through the ISP connected to PE3. The most straightforward approach is to configure CE1 and CE2 with a static default route pointing to PE3 as the next-hop for internet-bound traffic. This ensures that any traffic destined for the internet will be routed directly to PE3, which is directly connected to the internet. Other options (A, B, and D) involve more complex configurations and are not necessary for this specific task. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

The SPT threshold set to infinity causes multicast traffic to permanently stay on the shared tree and not switch to the source tree. In multicast routing, the Shortest Path Tree (SPT) threshold determines when a router should switch from receiving multicast traffic on the shared tree to receiving it on a source tree. Setting the SPT threshold to infinity means that the router will always receive multicast traffic on the shared tree

• NetFlow provides traceback information by analyzing network traffic. To configure NetFlow for traceback, you need to set up a classification ACL (Access Control List) to identify which type of traffic will be analyzed. This allows NetFlow to focus on specific traffic flows and report relevant information. The classification ACL can be based on various criteria such as source/destination IP addresses, port numbers, or protocols. By defining the classification ACL, you ensure that only the relevant traffic is considered for NetFlow analysis.
• References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0

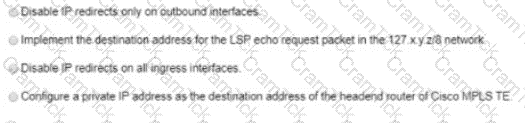

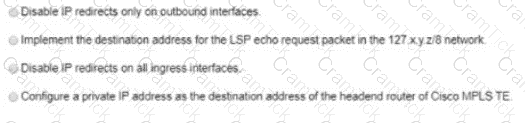

 To prevent packets from being forwarded beyond the service provider domain when the Label Switched Path (LSP) is down, the engineer must configure a private IP address as the destination address of the headend router of Cisco MPLS Traffic Engineering (TE). This ensures that if the LSP fails, the packets will not be routable over the public internet, thus containing them within the service provider’s network.

References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) documentation provides guidelines on MPLS TE configuration, including the use of private IP addresses for headend routers to maintain traffic within the service provider domain. This practice is aligned with the principles of traffic engineering and network containment for service providers.

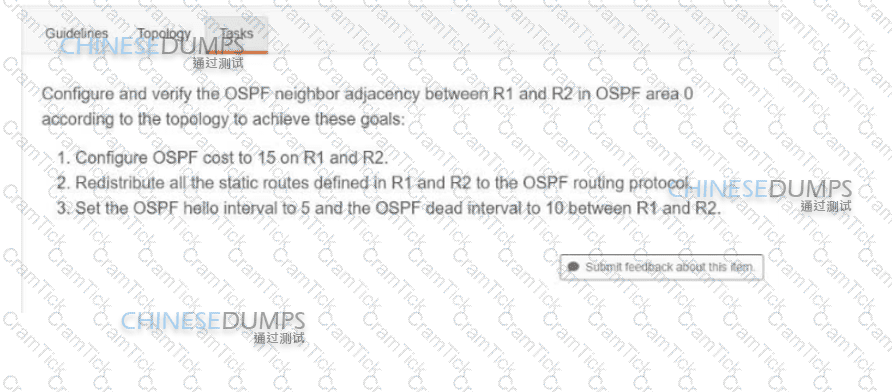

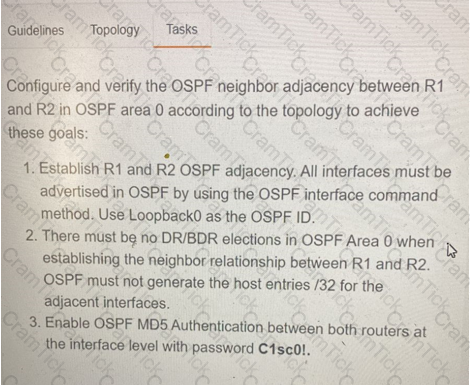

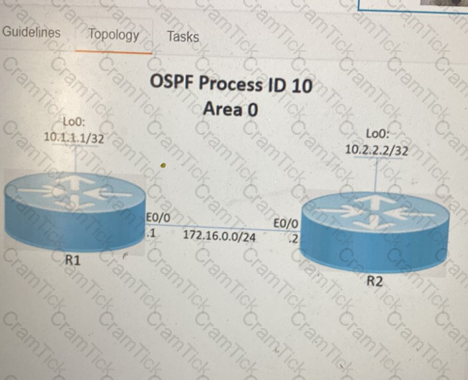

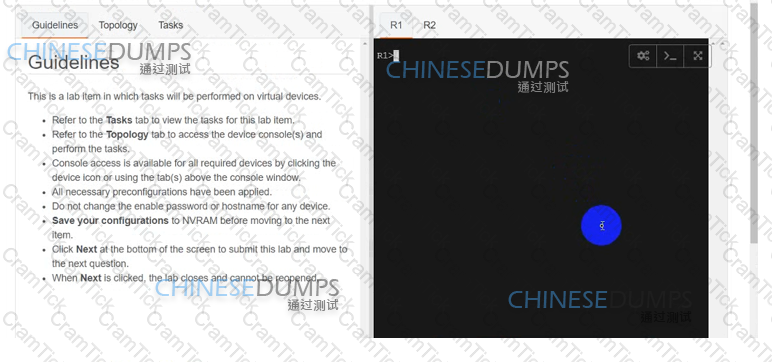

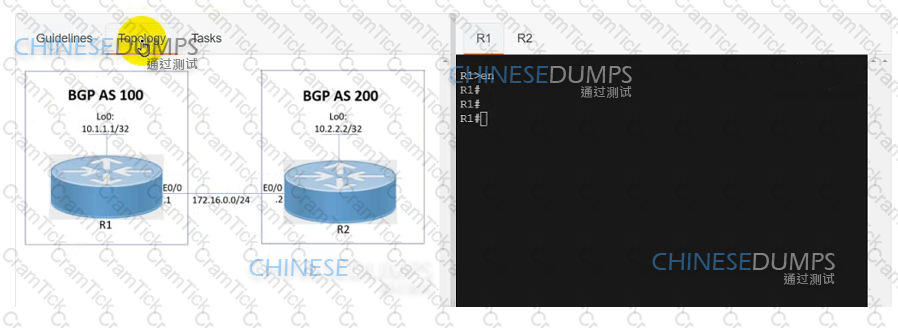

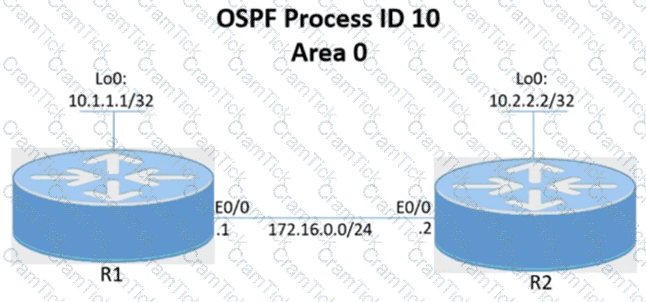

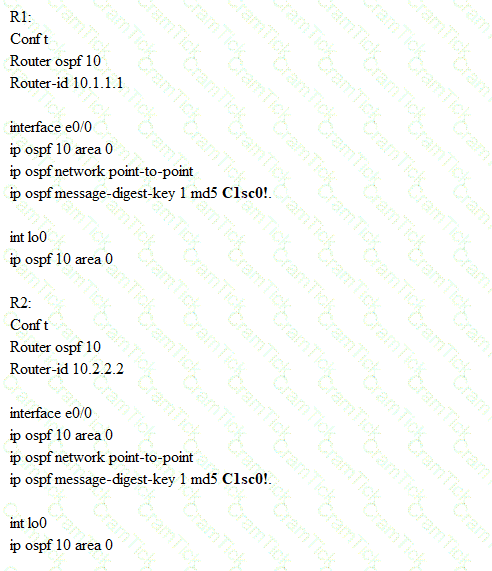

TASK1:Run “sh run” command on both routers, check if there is any “router ospf” configured. If it’s configured, check if Loopback0 ip it’s being used as OSPF ID. If it’s, jump to TASK2. Otherwise run:R1

router ospf 10

router-id 10.1.1.1

R2

router ospf 10

router-id 10.2.2.2

TASK2:

R1 & R2

int lo0

ip ospf 10 area 0

ip ospf network point-to-point

!

int e0/0

ip ospf network point-to-point

ip ospf 10 area 0

ip ospf authentication message-digest

ip ospf message-digest-key 1 md5 C1sc0!

!

 ISP delegation to PCE servers involves assigning specific tasks or roles to different PCE servers within a network. Option A refers to adding a new PCE server with lower precedence than the primary PCE, which means introducing an additional server that has less priority in task execution compared to the existing primary one. Option B involves changing the precedence of any of the PCE servers, indicating a modification in their hierarchical order or priority for task execution. References := Cisco Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

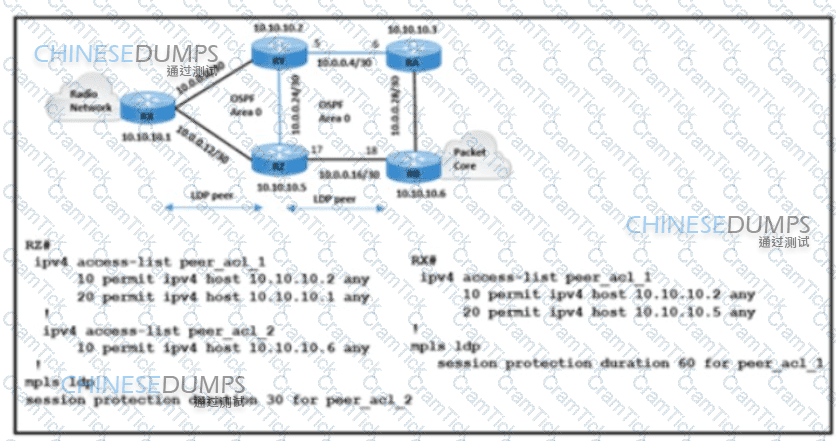

To enable LDP session protection for LDP neighbors within each VRF, the engineer should configure LDP session protection within the individual VRFs. This ensures that LDP sessions are protected at the VRF level, providing security and stability for MPLS-based services. By enabling LDP session protection within each VRF, the router will take appropriate actions to protect LDP sessions against misbehaving neighbors or potential attacks. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0

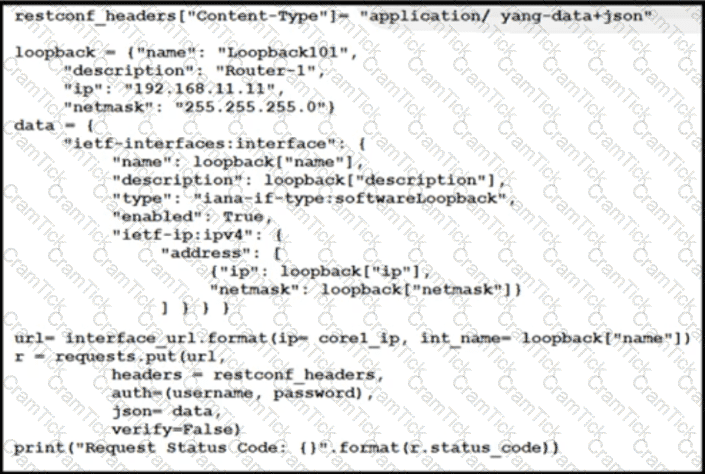

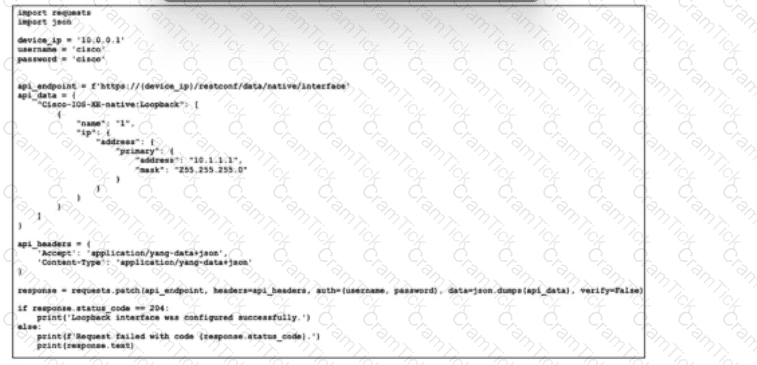

 Transport Layer Security (TLS) is essential for securing RESTCONF communications on network devices. TLS provides a secure channel with encryption, ensuring that the data exchanged between the client and server remains private and integral. For RESTCONF to utilize TLS, it requires proper certificates for authentication. These certificates confirm the identity of the devices involved in the communication, preventing man-in-the-middle attacks and unauthorized access2.

References := Programmability Configuration Guide, Cisco IOS XE Amsterdam 17.1.x - RESTCONF Protocol2.

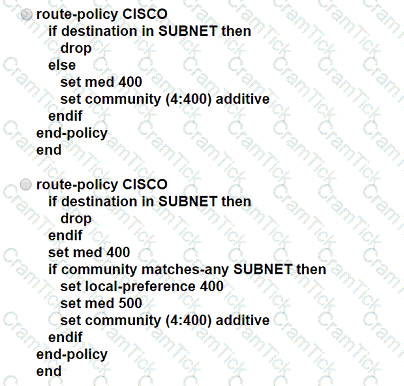

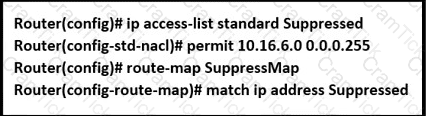

 The configuration in Option D is correct for implementing BGP selective prefix suppression according to the requirements. The “aggregate-address” command is used to configure the advertisement of the summarized route 10.16.0.0/21, and the “suppress-map” option allows for selective suppression of specific prefixes, in this case, 10.16.6.0/24. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training & Certification

The REST API command shown in the exhibit is a POST request to a specific URL, indicating that it is used to submit data to be processed to a specified resource. In this case, the resource is an XML file named “Descriptions.xml”. POST requests are used when submitting data to be processed by the resource identified by the URI. The nature of the process conducted on the submitted data depends on that particular URI. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - REST API section.

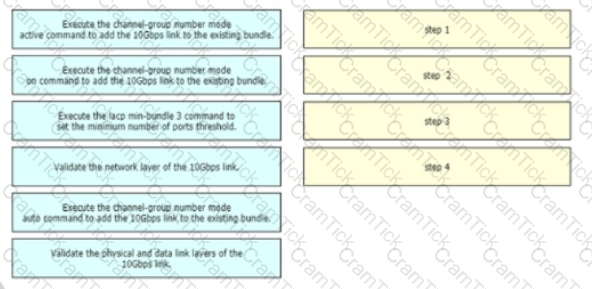

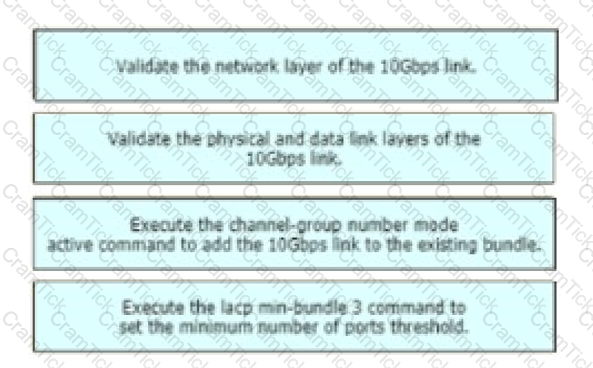

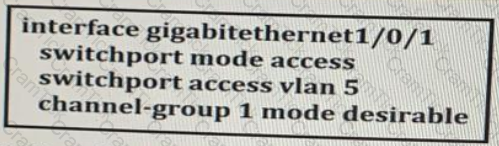

The command channel-group 1 mode desirable configures the switch port to actively send PAgP packets to negotiate forming an EtherChannel. PAgP is a Cisco-proprietary protocol used in the automatic creation of EtherChannel links. When set to ‘desirable’, the port actively attempts to form an EtherChannel, which means it sends PAgP packets without waiting for the connected peer to initiate the negotiation.

References: For more information on link aggregation and EtherChannel configurations, refer to the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials, specifically the sections covering EtherChannel and PAgP.

• A. Reconnect Timeout field: Specifies the time within which the LDP session should be reestablished after a failure.
• C. Graceful restart capability in OPEN message: Indicates that the router supports LDP graceful restart and is capable of maintaining its MPLS forwarding state across a control plane failure.
• D. Recovery Time field: Specifies the time that the router will maintain the MPLS forwarding state while it attempts to reestablish LDP sessions.

 The multicast implementation shown in the exhibit indicates that R2 is elected as the RP (Rendezvous Point) for the domain. This is inferred from the configuration commands which show R2 set up as a Bootstrap Router (BSR) candidate. In PIM-SM (Protocol Independent Multicast Sparse Mode), the BSR is responsible for announcing the RP-set to all routers in the PIM domain, and since R2 is the only BSR candidate, it effectively becomes the RP by default unless there are other configurations not shown in the exhibit.

References: The explanation is based on the concepts outlined in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course, which covers multicast routing and PIM-SM operations in detail. For more information, you can refer to the official Cisco SPCOR training and certification resources.

When configuring the 802.1q VLAN tag, the MTU must be increased by 4 bytes. This is because the 802.1Q tag adds an additional header to the Ethernet frame, which includes information such as the VLAN ID and priority. To accommodate this extra header without fragmenting the packet, the MTU must be increased accordingly2. References: Configure 802.1Q VLAN Tagging, 802.1q and MTU.

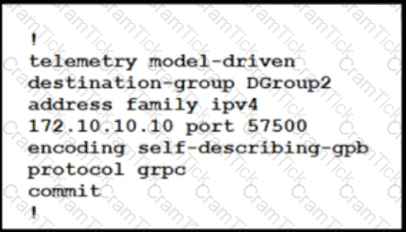

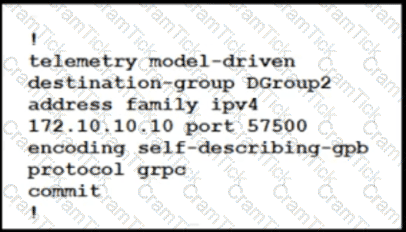

The core component of MDT that describes the data streamed to a collector is the encoder. In the context of Microsoft Deployment Toolkit (MDT), the encoder is not explicitly mentioned; however, the concept aligns with the process of creating and capturing images of operating systems, which involves encoding or compiling the necessary data into a deployable image.

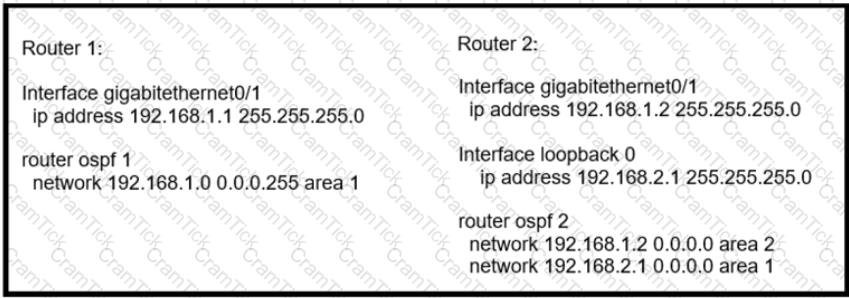

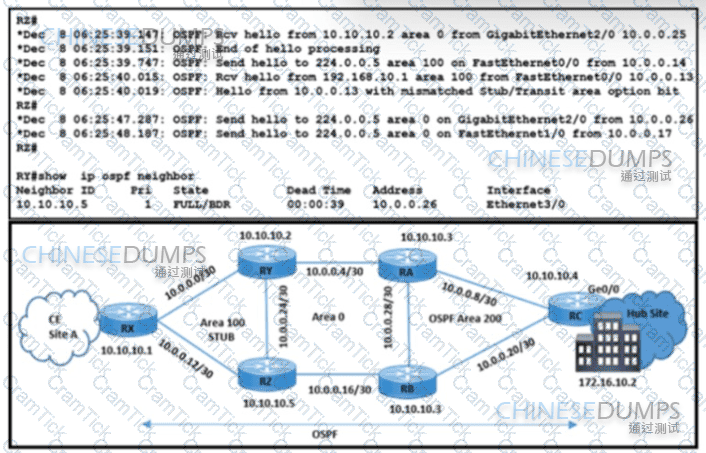

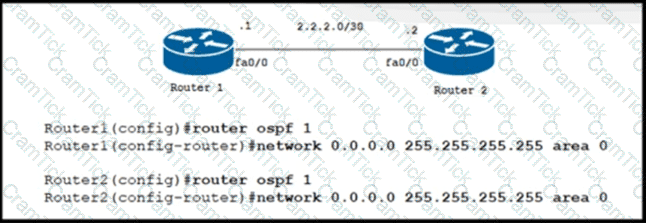

The issue with Router 1 missing the route for Router 2’s loopback 0 is likely due to the routers being configured in different OSPF areas. For OSPF to properly exchange routing information, routers within the same network should be configured in the same area. Therefore, the engineer should change the area numbers on Router 1 and Router 2 to be the same, ensuring they can exchange routes, including the route for Router 2’s loopback 0.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) documentation and study materials.

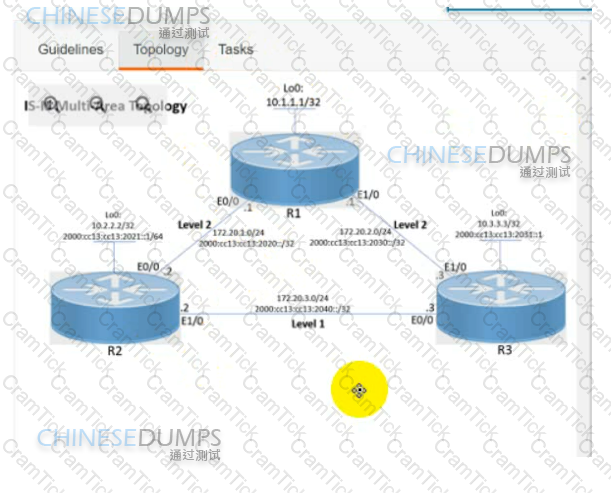

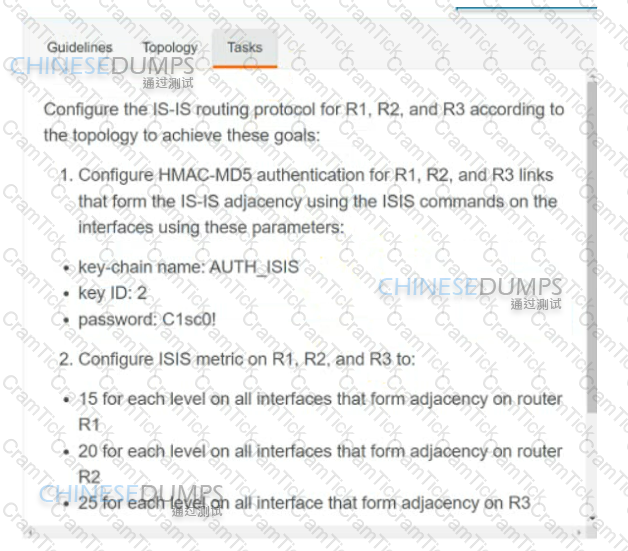

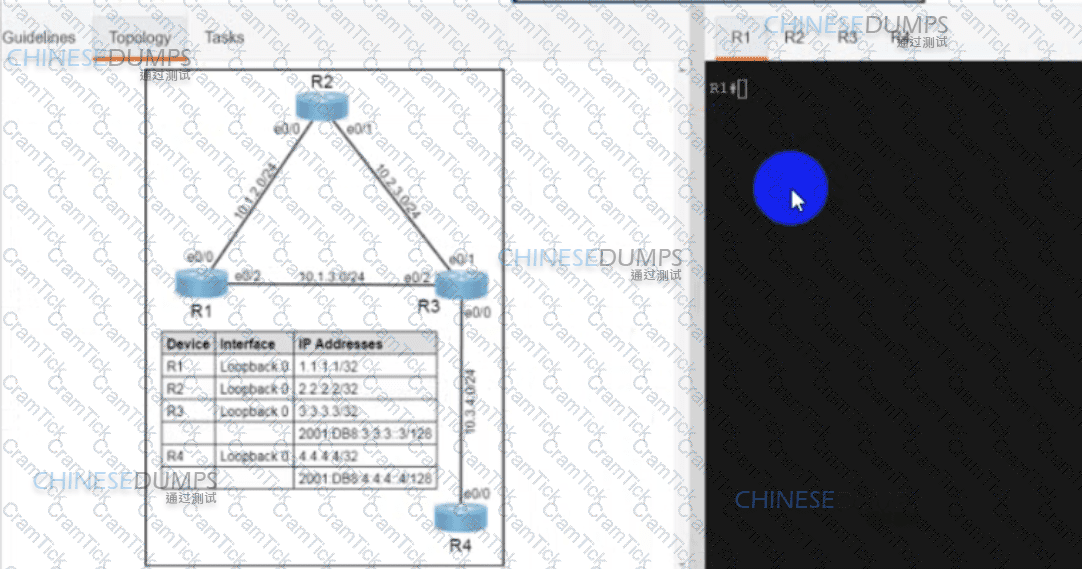

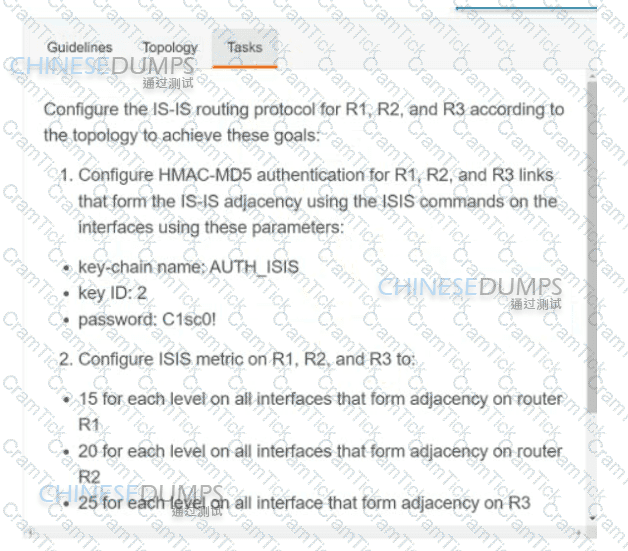

R1

key chain AUTH_ISIS

key 2

key-string C1sco!

exit

int range et0/0 , et1/0

isis authen key-chain AUTH_ISIS

ip isis

isis metric 15

Copy run start

R2

key chain AUTH_ISIS

key 2

key-string C1sco!

exit

int range et0/0 , et1/0

isis authen key-chain AUTH_ISIS

ip isis

isis metric 20

Copy run start

R3

key chain AUTH_ISIS

key 2

key-string C1sco!

exit

int range et0/0 , et1/0

isis authen key-chain AUTH_ISIS

ip isis

isis metric 25

Copy run start

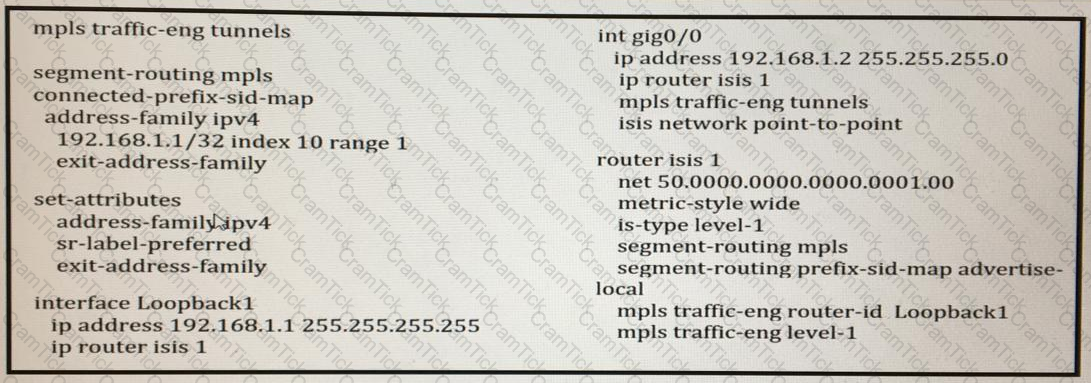

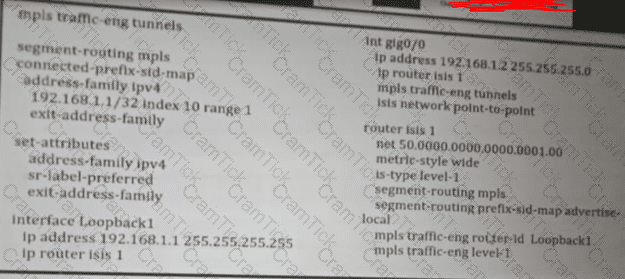

 The configuration shown is for the head-end router of a Cisco MPLS TE tunnel with segment routing. The commands included, such as “mpls traffic-eng tunnels” and “segment-routing mpls,” indicate that this is set up for a head-end router in an MPLS TE tunnel. There is no requirement for an explicit path or OSPF to be running, which eliminates options A and B. Option C is also incorrect as there’s no indication of a dynamic path configuration present.

References: The Implementing and Operating Cisco Service Provider Network Core Technologies course provides a deep dive into Service Provider technologies, including MPLS traffic engineering and segment routing, which are relevant to this configuration

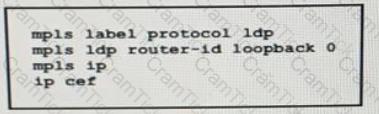

The configuration snippet shows that MPLS and LDP are configured globally but not enabled on an interface. The commands include “mpls label protocol ldp,” “mpls ldp router-id loopback 0,” and “mpls ip,” which are necessary for global settings. However, to establish LDP neighbors and exchange labels, LDP must be enabled on the specific interface where it’s needed.

References:

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)
• Cisco SPCOR Training resources available on the Cisco Learning Network Store.

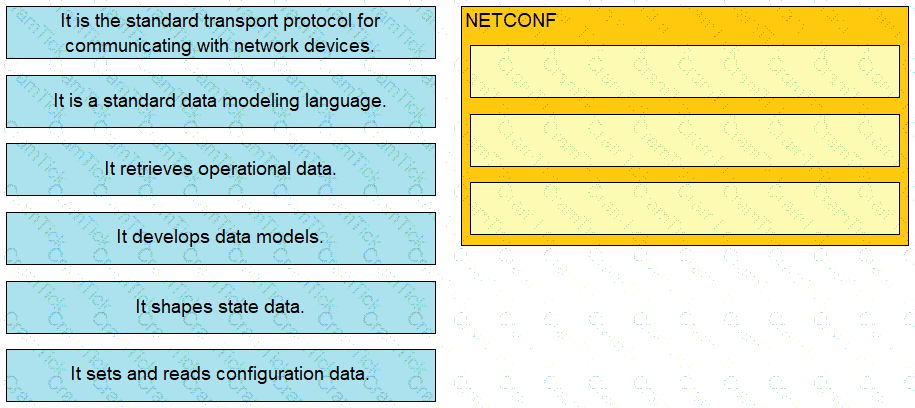

YANG (Yet Another Next Generation) is a data modeling language used to model configuration and state data of a network. It is used to define the data structure of configuration files and is widely used for network configuration and management. YANG uses containers to categorize related nodes, allowing for a hierarchical organization of the data. Types can be associated with each leaf, but they are not required. Spines are not used in YANG, and it is not a distributed model of nodes.

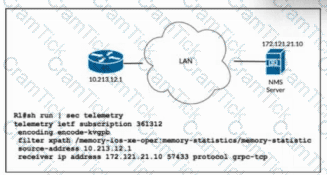

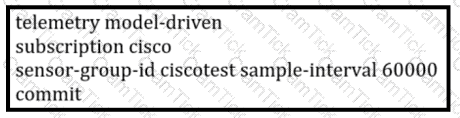

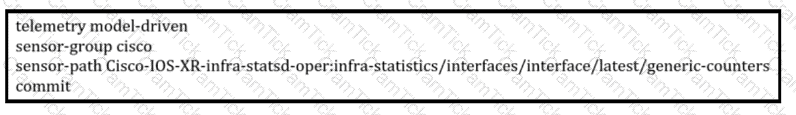

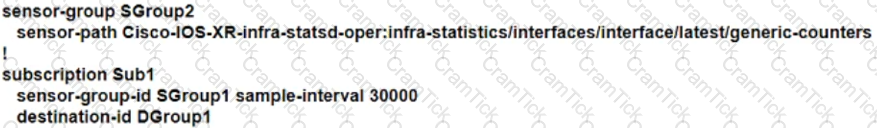

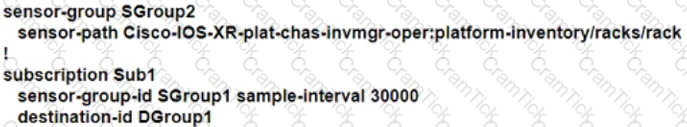

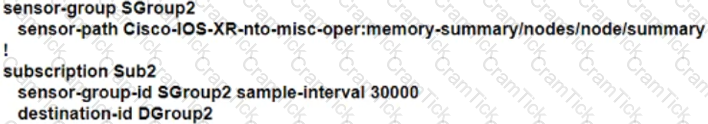

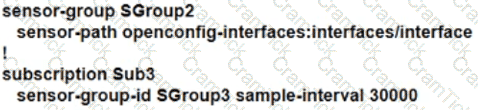

Model-driven telemetry (MDT) utilizes YANG models to enable the subscription to specific data items that are streamed from network devices. This allows applications to receive near real-time updates without the need for traditional polling methods. MDT with YANG provides a more efficient and scalable way to monitor network devices by pushing updates to subscribers, which can specify the exact data they require2.

References: Configure Model-driven Telemetry on Cisco IOS-XE Devices with YANG Suite - Cisco2.

 The iosxr_command module in Ansible is used to issue commands on remote devices running Cisco IOS XR. This module allows network administrators to execute operational commands on Cisco routers and switches, which is essential for tasks such as retrieving information or applying configuration changes. It is a part of network automation using Ansible, which simplifies the management of network devices by automating repetitive tasks.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course and study guide

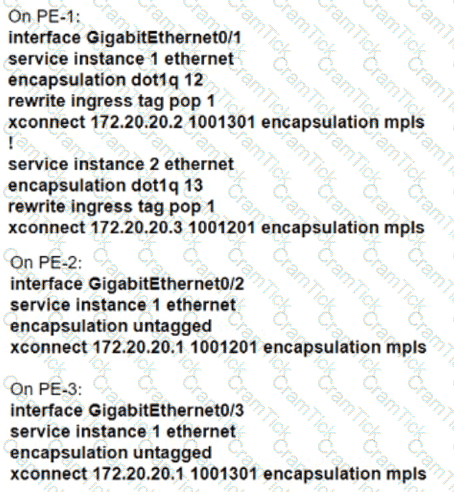

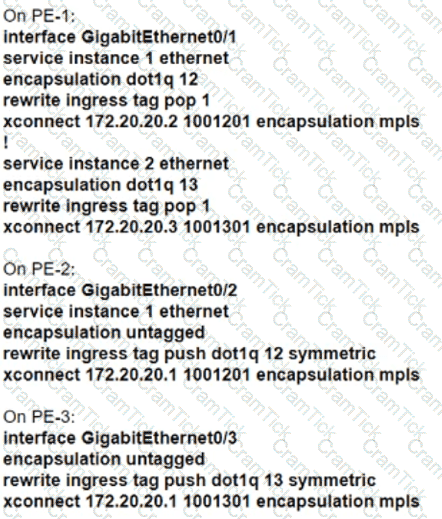

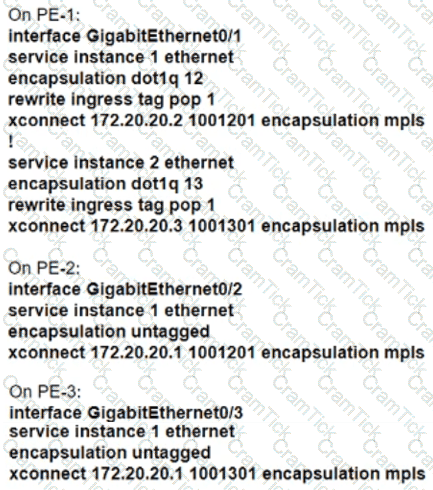

• : In this scenario, E-LINE pseudowires are suitable because they create a point-to-point Ethernet connection between the two sites. E-LINE pseudowires are commonly used for point-to-point Ethernet services.
• References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0

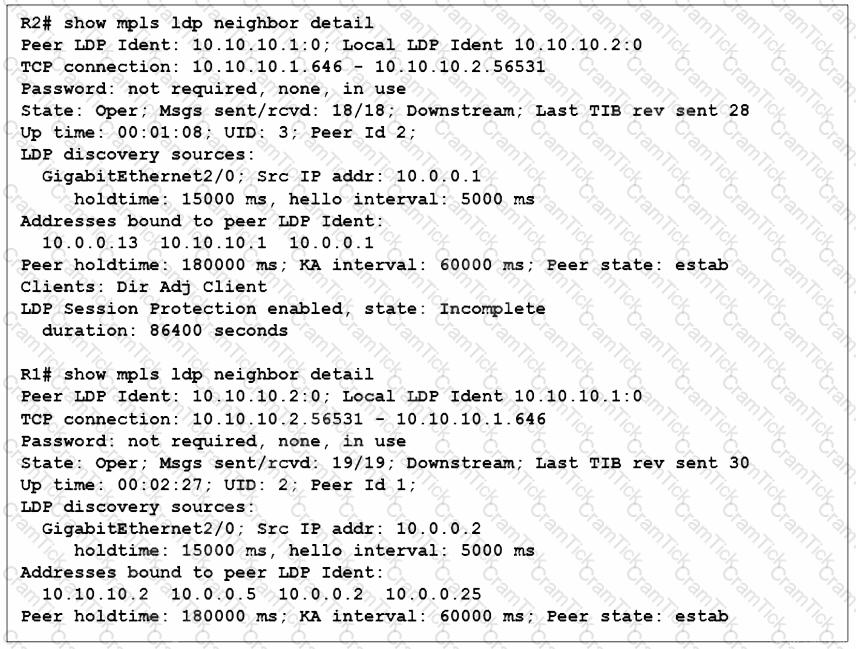

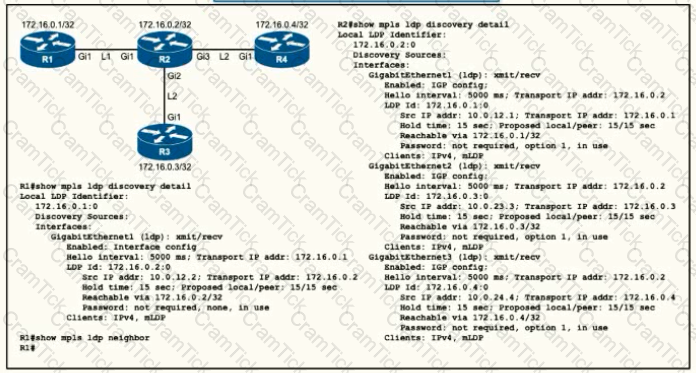

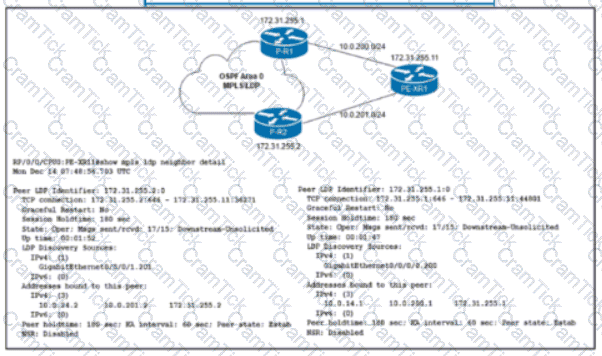

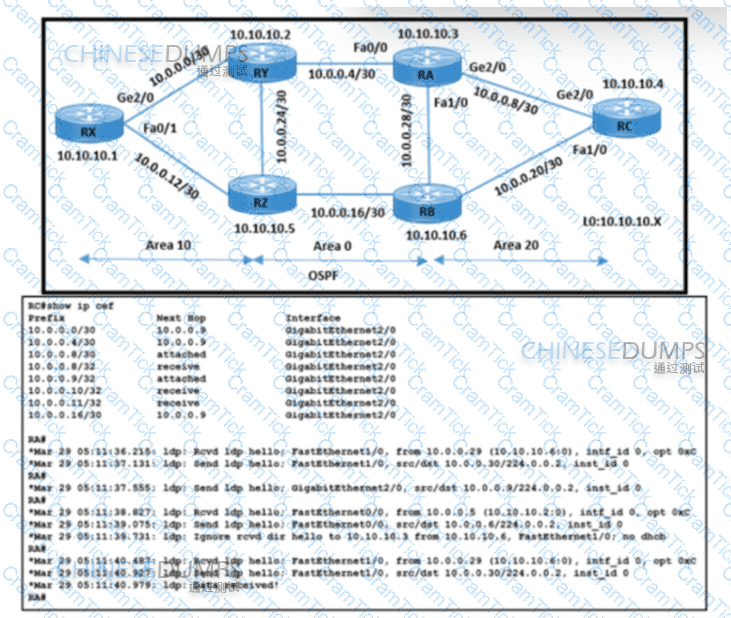

The issue here is that R1 and R2 cannot yet establish an LDP TCP connection. From the exhibit, it’s clear that the password is not required as it states “Password: not required, none, in use”. So, option C “Configure the no mpls Idp password option 1 command on R2” would be the correct answer to allow the establishment of an LDP TCP connection without requiring a password. This aligns with Cisco’s guidelines on configuring MPLS LDP where passwords might not be necessary for establishing connections between routers.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR

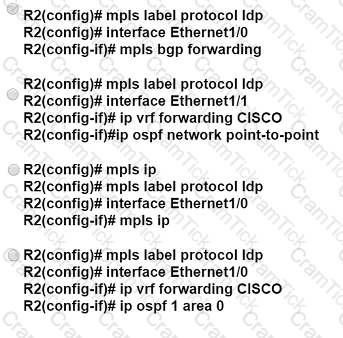

 To establish MPLS LDP sessions between two routers, both routers must be configured to support MPLS on the interfaces that connect them. The configuration shown for R2 includes enabling MPLS label protocol LDP and configuring interfaces Ethernet1/0 and Ethernet1/1. However, to complete the MPLS LDP session setup, R2 also needs to have MPLS enabled on the interface toward R1. This is done by entering the interface configuration mode for the relevant interface and using the mpls ip command. This command enables MPLS forwarding for IP packets on the interface, which is necessary for LDP to advertise and map labels to the IP routes.

References := The answer is based on the concepts covered in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course,

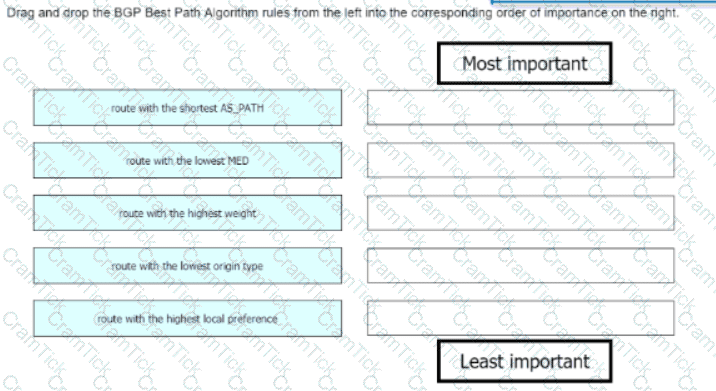

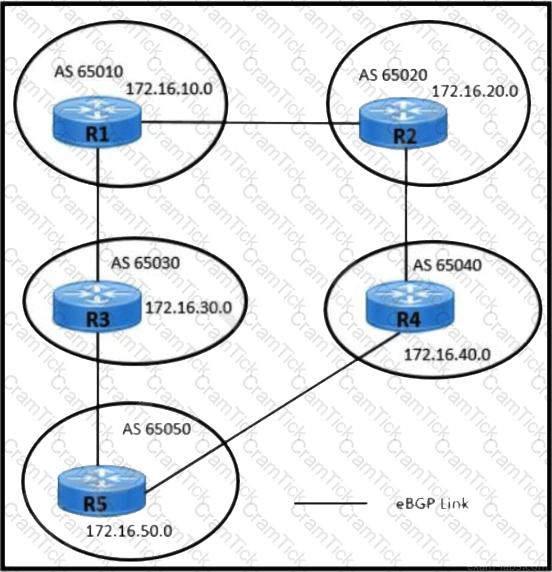

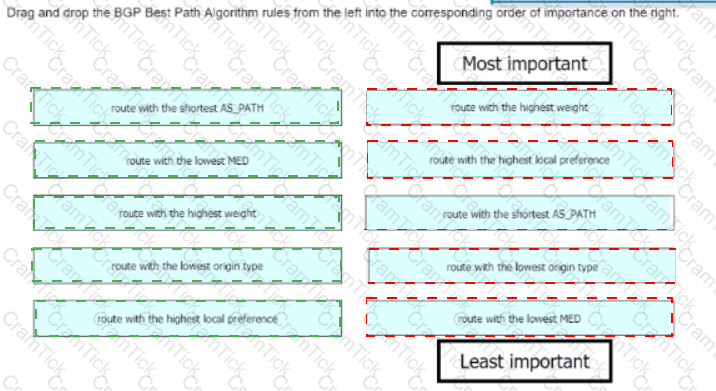

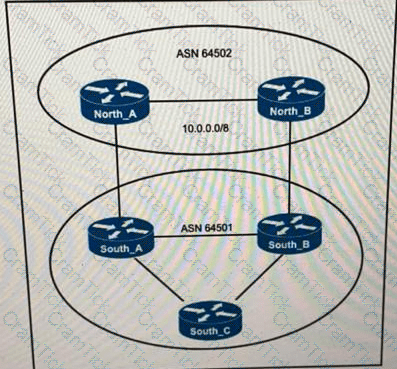

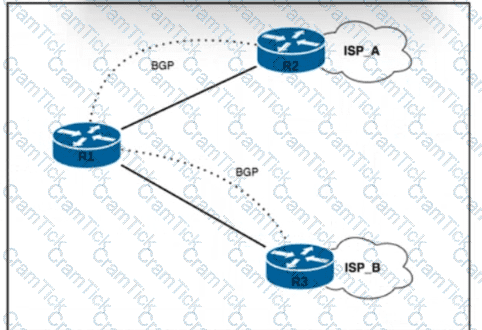

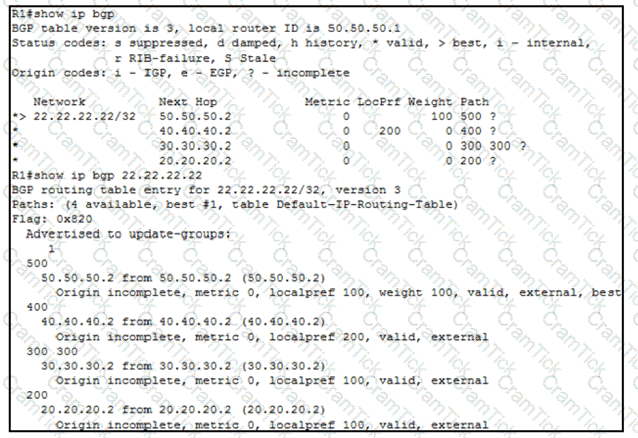

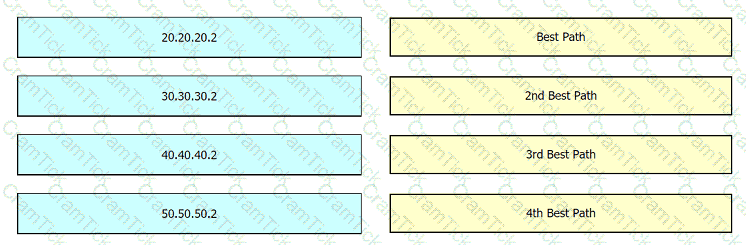

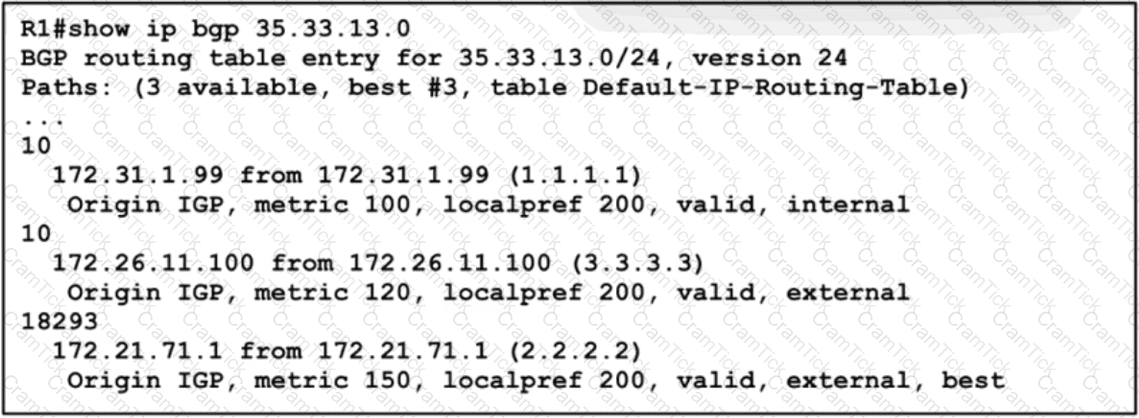

The weight parameter in BGP (Border Gateway Protocol) is a Cisco-specific attribute that is local to the router on which it is configured. It is used to prefer one path over another when multiple paths to the same destination are available. The weight is not advertised to other routers, making it a local parameter.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

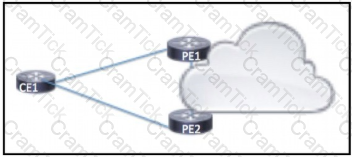

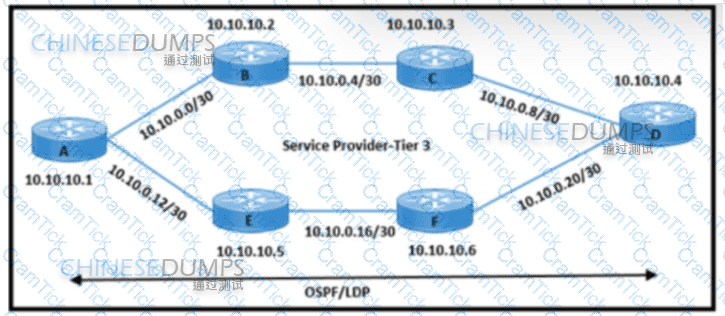

To ensure multiple paths toward the hosting-as-a-service solution and basic protection against traffic black-holing in case of link failure, the engineering team should:

• B. Configure the fast-reroute per-prefix command for the IS-IS protocol in the MPLS network. This action enables fast reroute, which is a mechanism to quickly switch over to a backup path in case the primary path fails, without waiting for the routing protocol to converge.
• D. Configure the mpls ldp sync command in the MPLS network with the BGP additional-paths receive and additional-paths send options. MPLS LDP (Label Distribution Protocol) synchronization ensures that a label-switched path (LSP) is not used for forwarding traffic until all routers along the path have signaled that they have label information for that LSP. The BGP additional-paths feature allows for the advertisement of multiple paths for the same prefix, providing path diversity and redundancy.

 The Network Services Orchestrator (NSO) is designed to allow service providers to automate network operations efficiently. It provides a single, well-defined API that enables integration across various network environments. NSO’s capabilities include zero-touch telemetry, machine learning intuition, open APIs, and automated actions, which facilitate a simpler and more efficient network operation experience. This makes it an ideal choice for service providers looking to plan, optimize, and achieve closed-loop operations within their networks.

References := The information is based on the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) training and certification resources, which offer a deep dive into service provider technologies, including core architecture, services, networking, automation, quality of services, security, and network assurance123.

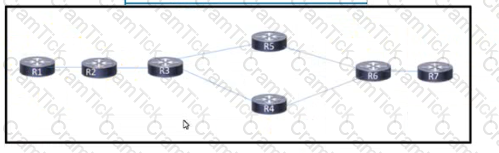

 To prevent an MPLS TE Label Switched Path (LSP) from using any overseas links, an operator would use the explicit path feature. This feature allows the operator to define a specific route for the LSP to follow, which can be configured to exclude paths that traverse overseas links.

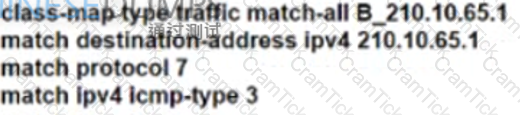

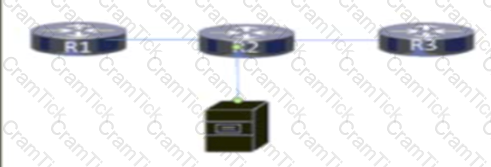

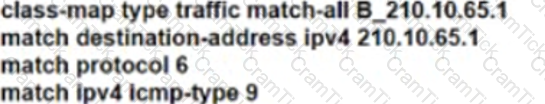

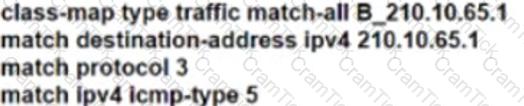

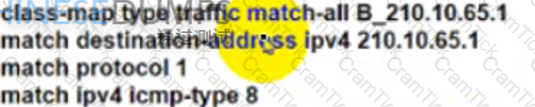

The configuration should include a class-map that matches the ICMP traffic destined for the web server’s IP address. This can be achieved by using an access control list (ACL) within the class-map to match the ICMP traffic. Then, a policy-map should be applied that sets the next hop to the IP address of the new security appliance. This policy-map is then applied to the appropriate interface on router R2 using the service-policy command.

References: The Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course provides detailed information on configuring class-maps and policy-maps for traffic redirection. Specifically, it covers topics related to VPLS services and DDoS protection, which are relevant to the scenario presented in the question12. The course materials and official Cisco documentation serve as the primary references for this solution.

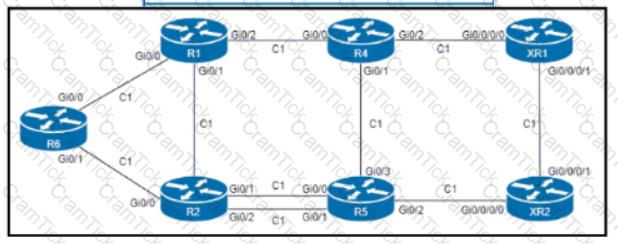

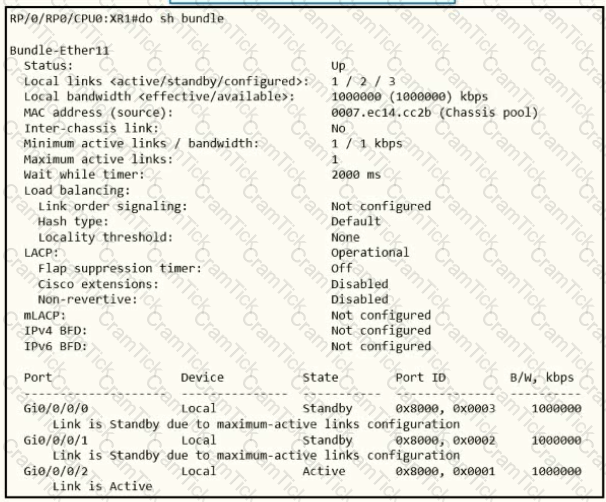

 When interface Gi0/0/0/2 is shut down for maintenance, the other interfaces’ states are affected based on their current configurations and roles. In this case, Gi0/0/0/0 becomes active because it is next in line to take over the traffic load, ensuring that network service remains uninterrupted. Gi0/0/0/1 remains standby as it was before the shutdown of Gi0/0/0/2.

References: The explanation can be inferred from understanding Cisco’s technology and protocols related to interface states and bundle ether configurations,
