To test connectivity to a server from within a specific routing instance, you use thepingcommand along with therouting-instanceoption to specify the routing instance from which you are pinging. This is necessary because the routing table associated withvr3is separate from the main routing table, and you must explicitly tell the device to use thevr3routing table to reach the server.

References:

• Juniper Networks documentation on Routing Instances: Routing Instances Overview

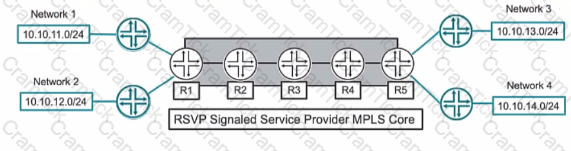

Given the RSVP Signaled Service Provider MPLS Core network shown in the exhibit, only a single Label Switched Path (LSP) is required to support all four networks because MPLS can use label stacking to multiplex multiple LSPs over a single physical path. Therefore, one LSP can be established through the MPLS core, and all networks can use this LSP with different label stacks.References:

• MPLS Fundamentals, Juniper Networks Documentation
• RSVP-TE Signaling, Juniper Networks Documentation

The community attribute in BGP is an optional transitive attribute. It is not mandatory for BGP operations, but when it is present, it should be passed unchanged to other BGP peers unless explicitly modified by a routing policy. The community attribute is used to group destinations in a certain way, often to apply routing policies to those destinations collectively.

References:

• Juniper Networks documentation on BGP communities: BGP Communities Overview
