PCNSA Palo Alto Networks Certified Network Security Administrator (PAN-OS 10.0) Questions and Answers

In the FW you define an Auth sequence which specifies the Auth Profile. If you click add on an Auth Profile and define one named TACACS for example, the Auth Profile calls in the TACACS+ Server Profile.

Oversubscription is a feature that allows you to use more private IP addresses than public IP addresses for NAT. This means that multiple private IP addresses can share the same public IP address, as long as they use different ports. Oversubscription can be used in two types of NAT: Dynamic IP and Port (DIPP) and Dynamic IP. DIPP NAT translates both the source IP address and the source port number of the outgoing packets, and can have an oversubscription rate greater than 1. Dynamic IP NAT translates only the source IP address of the outgoing packets, and can have an oversubscription rate of 1 or less. Static IP and Destination NAT do not support oversubscription, as they require a one-to-one mapping between the private and public IP addresses. References: Source NAT, Configure NAT, NAT

Deny is a policy action, random early drop is part of the inner workings of DoS protection

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-admin/authentication/configure-an-authentication-profile-and-sequence

References:

Explanation/Reference:

Anti-Spyware Security Profiles block spyware on compromised hosts from trying to communicate with external command-and-control (C2) servers, thus enabling you to detect malicious traffic leaving the network from infected clients.

https://docs.paloaltonetworks.com/pan-os/10-1/pan-os-upgrade/upgrade-panorama/deploy-updates-to-firewalls-log-collectors-and-wildfire-appliances-using-panorama/schedule-a-content-update-using-panorama

References:

The NAT Target tab is a table that allows you to specify the target firewalls or device groups for each NAT policy rule on Panorama. This tab is available only on Panorama and not on individual firewalls. The NAT Target tab enables you to create a single NAT policy rulebase on Panorama and then selectively push the rules to the firewalls or device groups that require them. This reduces the complexity and duplication of managing NAT policies across multiple firewalls1. References: NAT Target Tab, NAT Policy Overview, NPTv6 Overview, Updated Certifications for PAN-OS 10.1.

References:

Dynamic Address Groups: A dynamic address group populates its members dynamically using looks ups for tags and tag-based filters. Dynamic address groups are very useful if you have an extensive virtual infrastructure where changes in virtual machine location/IP address are frequent. For example, you have a sophisticated failover setup or provision new virtual machines frequently and would like to apply policy to traffic from or to the new machine without modifying the configuration/rules on the firewall.

https://docs.paloaltonetworks.com/pan-os/8-1/pan-os-web-interface-help/objects/objects-addres s-groups

https://docs.paloaltonetworks.com/pan-os/8-1/pan-os -admin/url-filtering/url-filtering-concepts/url-filtering-profile-actions

The policy set that should be used to ensure that a policy is applied just before the default security rules is the shared post-rulebase. The shared post-rulebase is a set of Security policy rules that are defined on Panorama and apply to all firewalls or device groups. The shared post-rulebase is evaluated after the local firewall policy and the child device-group post-rulebase, but before the default security rules. The shared post-rulebase can be used to enforce common security policies across multiple firewalls or device groups, such as blocking high-risk applications or traffic1. References: Security Policy Rule Hierarchy, Security Policy Rulebase, Certifications - Palo Alto Networks, Palo Alto Networks Certified Network Security Administrator (PAN-OS 10.0) or [Palo Alto Networks Certified Network Security Administrator (PAN-OS 10.0)].

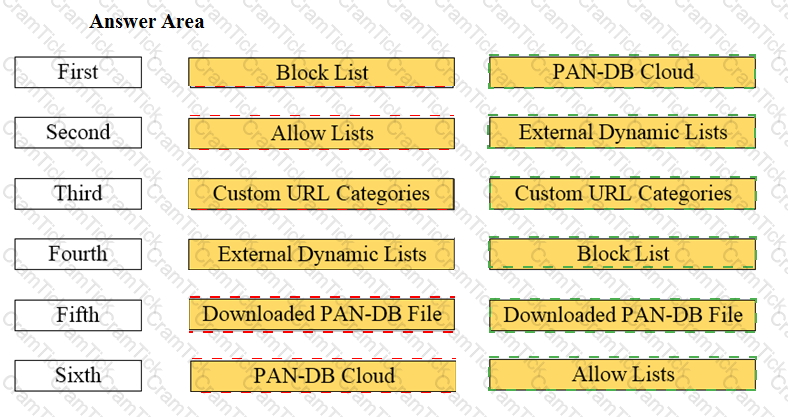

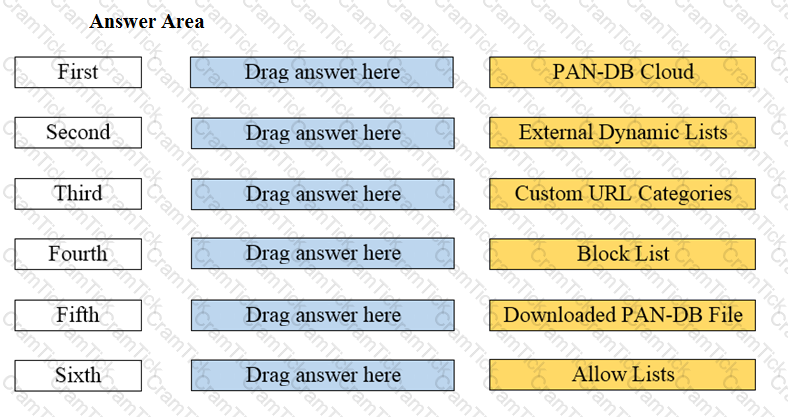

First – Block List

Second – Allow List

Third – Custom URL Categories

Fourth – External Dynamic Lists

Fifth – Downloaded PAN-DB Files

Sixth - PAN-DB Cloud

• Service routes are a feature of PAN-OS that allows the administrator to customize the interface that the firewall uses to send requests to external services, such as DNS, email, Palo Alto Networks updates, User-ID agent, syslog, Panorama, dynamic updates, URL updates, licenses, and AutoFocus1.
• By default, the firewall uses the management interface for all service routes, unless the packet destination IP address matches the configured destination service route, in which case the source IP address is set to the source address configured for the destination1.
• However, in some scenarios, the administrator may want to use a different interface for service routes, such as when the management interface does not have public internet access, or when the administrator wants to isolate or monitor the traffic for certain services23.
• To configure service routes, the administrator can select Device > Setup > Services > Service Route Configuration and customize each service with a source interface and a source address. The administrator can also configure destination service routes to specify a destination IP address and a gateway for each service1.
• Service routes are not related to routing protocols such as OSPF or BGP, which are used to exchange routing information between routers and determine the best path to reach a network destination. Service routes are only used to change the interface that the firewall uses to communicate with external services.

Therefore, service routes are used to route management plane services through data interfaces rather than the management interface.

References:

1: Configure Service Routes - Palo Alto Networks 2: Setting a Service Route for Services to Use a Dataplane’s Interface - Palo Alto Networks 3: How to Perform Updates when Management Interface does not have Public Internet Access - Palo Alto Networks

Explanation/Reference:

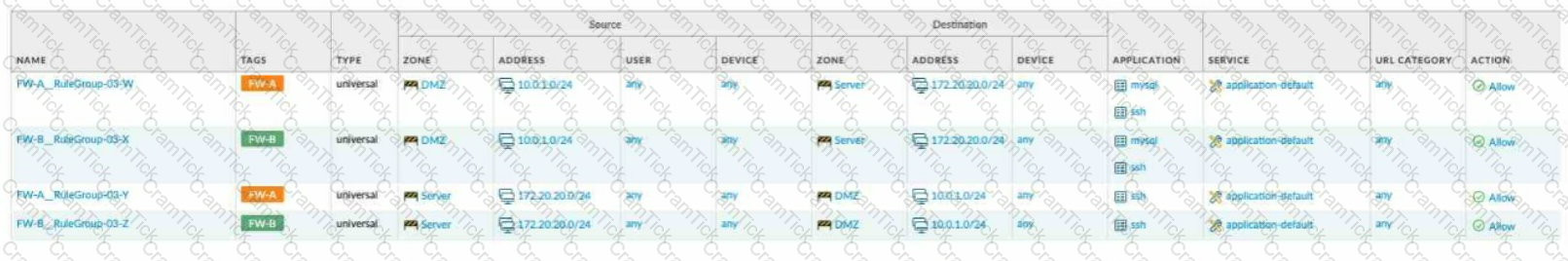

Option B enables the required traffic by allowing SSL and web-browsing from UNTRUST to DMZ, denying SSH from UNTRUST to DMZ, allowing MYSQL from DMZ to SERVER, and allowing SSH from SERVER to DMZ. Option A allows SSH from UNTRUST to DMZ, which is not required. Option C denies all the required traffic. Option D denies all traffic from UNTRUST to TRUST, which is irrelevant to the question

https://www.paloaltonetworks.com/services/education/palo-alto-networks-certified-network-security-administrator

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-web-interface-help/objects/objects-security-profiles/actions-in-security-profiles

The application characteristics can be found in three places on the PAN-OS interface: Objects tab > Application Filters, Objects tab > Application Groups, and Objects tab > Applications. These places allow you to view and manage the applications and application groups that are used in your Security policy rules. You can also create custom applications and application filters based on various attributes, such as category, subcategory, technology, risk, and behavior1. Some of the characteristics of these places are:

Objects tab > Application Filters: An application filter is a dynamic object that groups applications based on specific criteria. You can use an application filter to match multiple applications in a Security policy rule without having to list them individually. For example, you can create an application filter that includes all applications that have a high risk level or use peer-to-peer technology.

Objects tab > Application Groups: An application group is a static object that groups applications based on your custom requirements. You can use an application group to match multiple applications in a Security policy rule without having to list them individually. For example, you can create an application group that includes all applications that are related to a specific business function or project.

Objects tab > Applications: An application is an object that identifies and classifies network traffic based on App-ID, which is a technology that uses multiple attributes to identify applications. You can use an application to match a specific application in a Security policy rule and control its access and behavior. For example, you can use an application to allow web browsing but block file sharing or social networking.

References: Objects, [Application Filters], [Application Groups], [Applications], Updated Certifications for PAN-OS 10.1, Palo Alto Networks Certified Network Security Administrator (PAN-OS 10.0) or [Palo Alto Networks Certified Network Security Administrator (PAN-OS 10.0)].

References: https://knowl edgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClomCAC

The size of the NAT pool should be equal to the number of internal hosts that require address translations. By default, if the source address pool is larger than the NAT address pool and eventually all of the NAT addresses are allocated, new connections that need address translation are dropped. To override this default behavior, use Advanced (Dynamic IP/Port Fallback) to enable the use of DIPP addresses when necessary

• A profile is a set of rules or settings that defines how the firewall performs a specific function, such as detecting and preventing threats, filtering URLs, or decrypting traffic1.
• There are different types of profiles that can be applied to different types of traffic or scenarios, such as Antivirus, Anti-Spyware, Vulnerability Protection, URL Filtering, File Blocking, Data Filtering, Decryption, or WildFire Analysis1.
• The WildFire Analysis profile is a profile that enables the firewall to submit unknown files or email links to the cloud-based WildFire service for analysis and verdict determination2. WildFire is the industry’s most advanced analysis and prevention engine for highly evasive zero-day exploits and malware3. WildFire uses a variety of malware detection techniques, such as static analysis, dynamic analysis, machine learning, and intelligent run-time memory analysis, to identify and protect against unknown threats34.
• The Vulnerability Protection profile is a profile that protects the network from exploits that target known software vulnerabilities. It allows the administrator to configure the actions and log settings for each vulnerability severity level, such as critical, high, medium, low, or informational5.
• Content-ID is not a profile, but a feature of the firewall that performs multiple functions to identify and control applications, users, content, and threats on the network. Content-ID consists of four components: App-ID, User-ID, Content Inspection, and Threat Prevention.
• Advanced Threat Prevention is not a profile, but a term that refers to the comprehensive approach of Palo Alto Networks to prevent sophisticated and unknown threats. Advanced Threat Prevention includes WildFire, but also other products and services, such as DNS Security, Cortex XDR, Cortex XSOAR, and AutoFocus.

Therefore, the profile that should be used to obtain a verdict regarding analyzed files is the WildFire Analysis profile.

References:

1: Security Profiles - Palo Alto Networks 2: WildFire Analysis Profile - Palo Alto Networks 3: WildFire - Palo Alto Networks 4: Advanced Wildfire as an ICAP Alternative | Palo Alto Networks 5: Vulnerability Protection Profile - Palo Alto Networks : [Content-ID - Palo Alto Networks] : [Advanced Threat Prevention - Palo Alto Networks]

Another reason to choose the Windows agent over the integrated PAN-OS agent is to save processing cycles on the firewall’s management plane.

References:

To reference the same address object in Security policies on 100 Panorama-managed firewalls, across 10 device groups and five templates, the administrator should ensure that the Shared option is checked when creating the address object. This option allows the administrator to create a shared address object that is available to all device groups and templates on Panorama. The shared address object can then be used in multiple firewall policy rules, filters, and other functions1. This reduces the complexity and duplication of managing address objects across multiple firewalls2. References: Address Objects, Create a Shared Address Object, Certifications - Palo Alto Networks, Palo Alto Networks Certified Network Security Administrator (PAN-OS 10.0) or [Palo Alto Networks Certified Network Security Administrator (PAN-OS 10.0)].

Explanation/Reference:

Palo Alto Networks firewalls can map IP addresses to usernames using various methods, such as User-ID agents, Captive Portal, GlobalProtect, XML API, and HTTP headers. These methods allow the firewall to enforce security policies based on user identity, rather than just IP address. Some of these methods are:

• Using the XML API: The XML API allows external systems to send user mapping information to the firewall using HTTPS requests. The firewall can then use this information to identify the users behind the IP addresses and apply the appropriate policies1.
• A user connecting into a GlobalProtect gateway using a GlobalProtect Agent: GlobalProtect provides secure remote access to the network by establishing a VPN tunnel between the user’s device and the firewall. When a user connects to a GlobalProtect gateway using a GlobalProtect agent, the firewall can authenticate the user and map the user’s IP address to the username1.
• Usernames inserted inside HTTP Headers: The firewall can also extract usernames from HTTP headers in web traffic. This method requires the web server or proxy server to insert the username into a custom HTTP header that the firewall can read. The firewall can then use this information to map the IP address to the username1.

References: Map IP Addresses to Users, Certifications - Palo Alto Networks, Palo Alto Networks Certified Network Security Administrator (PAN-OS 10.0) or Palo Alto Networks Certified Network Security Administrator (PAN-OS 10.0).

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-web-interface-help/objects/objects-tags/create-tags

Explanation/Reference:

The Policy Optimizer is a feature in the PAN-OS GUI that allows an administrator to monitor the rule usage for a specified period of time, as well as optimize the security policies based on the traffic logs and recommendations. The Policy Optimizer can help the administrator to improve the security posture, reduce the attack surface, and simplify the policy management. The Policy Optimizer can be accessed from Policies > Policy Optimizer in the PAN-OS GUI. References: Policy Optimizer, View Policy Rule Usage, Updated Certifications for PAN-OS 10.1

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-web-interface-help/panorama-web-interface/defining-policies-on-panorama

https://docs.paloaltonetworks.com/panorama/9-0/panorama-admin/manage-firewalls/manage -device-groups/create-objects-for-use-in-shared-or-device-group-policy

• A DNS policy action is a setting in an Anti-Spyware security profile that defines how the firewall handles DNS queries to malicious domains. A malicious domain is a domain name that is associated with a known threat, such as malware, phishing, or botnet1.
• There are four possible DNS policy actions: alert, allow, block, and sinkhole1.
• The alert action logs the DNS query and allows it to proceed to the intended destination. This action does not prevent hacking attacks, but only notifies the administrator of the potential threat1.
• The allow action allows the DNS query to proceed to the intended destination without logging it. This action does not prevent hacking attacks, but only bypasses the DNS security inspection2.
• The block action blocks the DNS query and sends a response to the client with an NXDOMAIN (non-existent domain) error code. This action prevents hacking attacks by preventing the client from resolving the malicious domain1.
• The sinkhole action redirects the DNS query to a predefined IP address (the sinkhole IP address) that is under the control of the administrator. This action prevents hacking attacks by isolating the client from the malicious domain and allowing the administrator to monitor and remediate the infected host1.
• The override action is not a valid DNS policy action, but a setting in an Anti-Spyware security profile that allows the administrator to create exceptions for specific spyware signatures that they want to override the default action or log settings3.

Therefore, the two DNS policy actions that can prevent hacking attacks through DNS queries to malicious domains are block and sinkhole.

References:

1: Enable DNS Security - Palo Alto Networks 2: How To Disable the DNS Security Feature from an Anti-Spyware Profile - Palo Alto Networks 3: Security Profile: Anti-Spyware - Palo Alto Networks

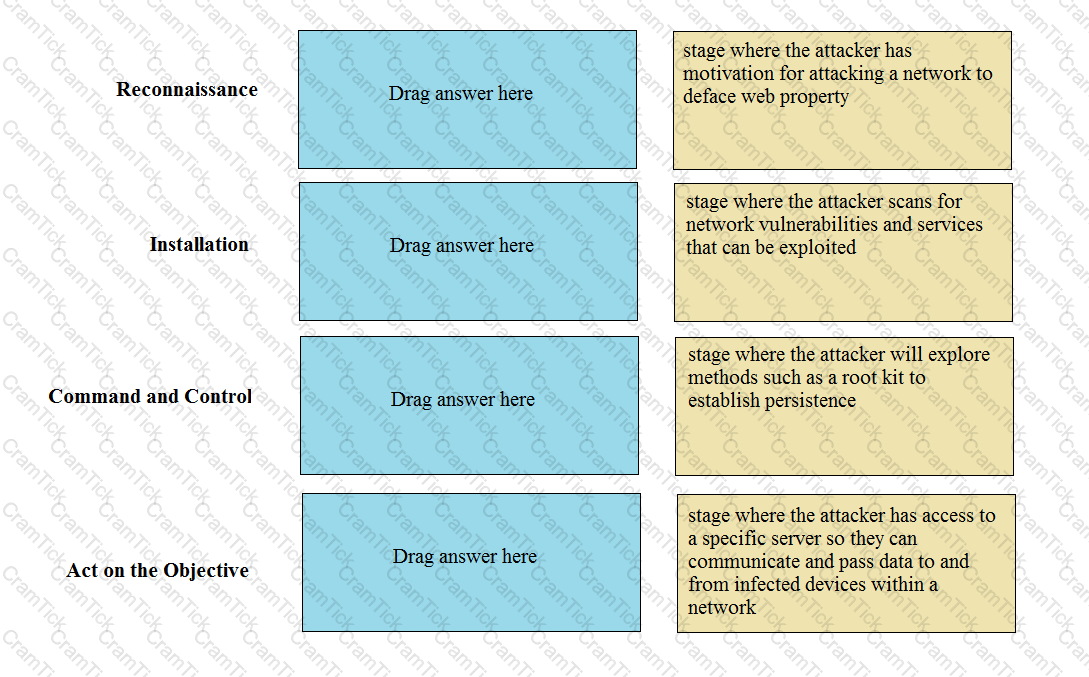

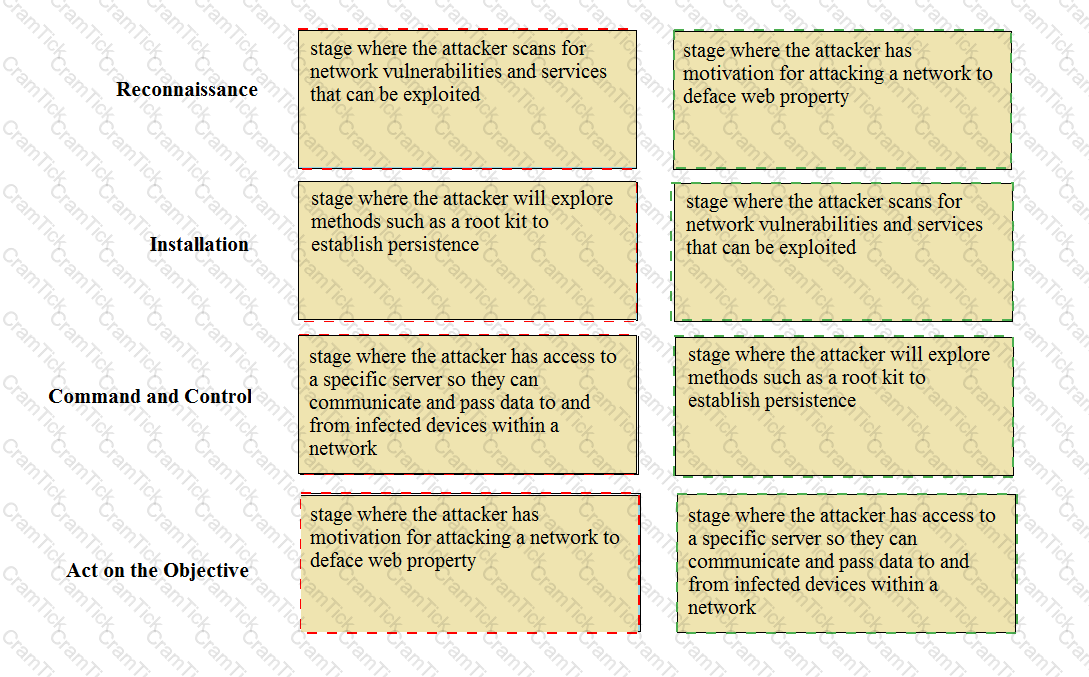

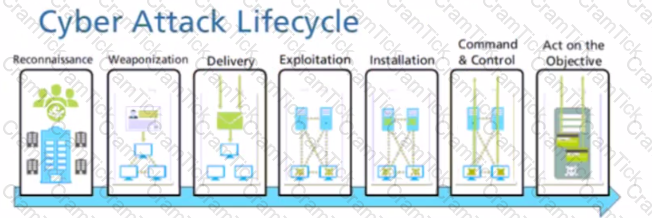

Reconnaissance – stage where the attacker scans for network vulnerabilities and services that can be exploited.

Installation – stage where the attacker will explore methods such as a root kit to establish persistence

Command and Control – stage where the attacker has access to a specific server so they can communicate and pass data to and from infected devices within a network.

Act on the Objective – stage where an attacker has motivation for attacking a network to deface web property

https://docs.paloaltonetworks.com/pan-os/11-0/pan-os-admin/app-id/use-application-objects-in-policy/create-a-custom-application

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClTHCA0

The Revert, Save, and Load operations all work with firewall co nfigurations local to the firewall. The Export operations transfer configurations as XML-formatted files from the firewall to the host running the web interface browser. From your local machine, you can save the files as configuration backups. The Import operations transfer XML configuration files from the host running the web interface browser to the firewall. The XML file can be loaded as the candidate configuration or even be committed to becoming the running configuration. [Palo Alto Networks]

References:

https://docs.paloaltonetworks.com/pan-os/9-0/pan-os-admin/app-id/manage-new-app-ids-introduced- incontent-releases/review-new-app-id-impact-on- existing-policy-rules

The show system fqdn command displays the FQDN objects configured on the firewall and their resolved IP addresses. This can help confirm if the FQDN objects are resolved correctly and if they match the expected traffic. A shadow rule is a rule that is never matched because a preceding rule covers the same traffic. If a shadow rule uses FQDN objects, it is possible that the FQDN objects are not resolved or have different IP addresses than the traffic, causing the rule to be ineffective.
