DP-420 Designing and Implementing Cloud-Native Applications Using Microsoft Azure Cosmos DB Questions and Answers

The partition key is what will determine how data is routed in the various partitions by Cosmos DB and needs to make sense in the context of your specific scenario. The IoT Device ID is generally the "natural" partition key for IoT applications.

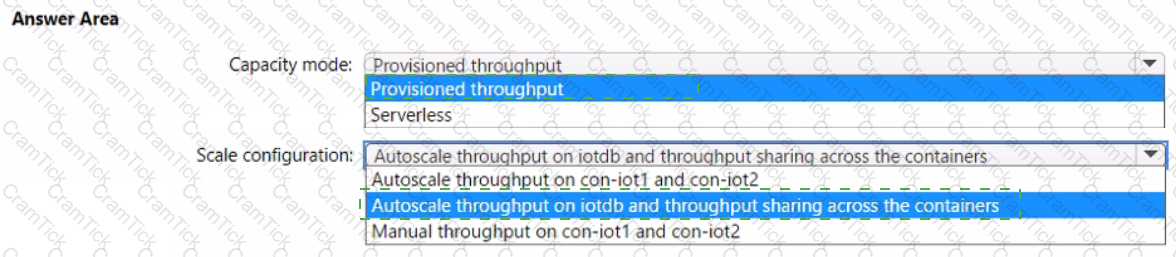

Scenario: The iotdb database will contain two containers named con-iot1 and con-iot2.

Ensure that Azure Cosmos DB costs for IoT-related processing are predictable.

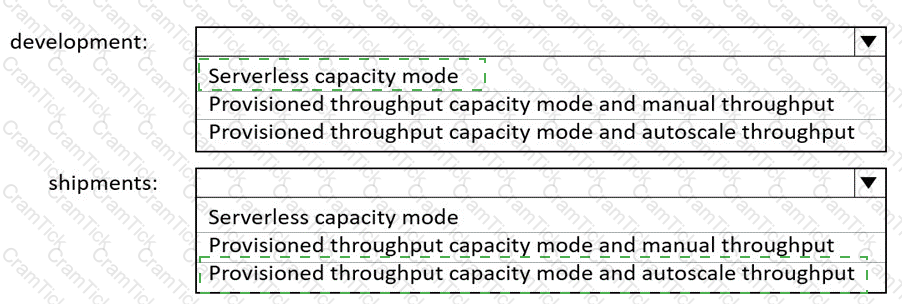

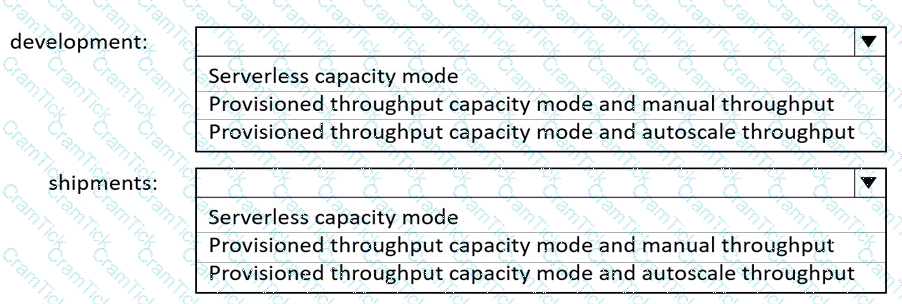

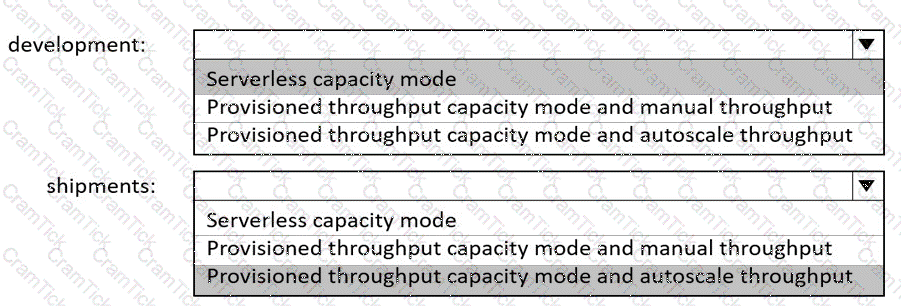

Box 1: Serverless capacity mode

Azure Cosmos DB serverless best fits scenarios where you expect intermittent and unpredictable traffic with long idle times. Because provisioning capacity in such situations isn't required and may be cost-prohibitive, Azure Cosmos DB serverless should be considered in the following use-cases:

Getting started with Azure Cosmos DB

Running applications with bursty, intermittent traffic that is hard to forecast, or low (<10%) average-to-peak traffic ratio

Developing, testing, prototyping and running in production new applications where the traffic pattern is unknown

Integrating with serverless compute services like Azure Functions

Box 2: Provisioned throughput capacity mode and autoscale throughput

The use cases of autoscale include:

Variable or unpredictable workloads: When your workloads have variable or unpredictable spikes in usage, autoscale helps by automatically scaling up and down based on usage. Examples include retail websites that have different traffic patterns depending on seasonality; IOT workloads that have spikes at various times during the day; line of business applications that see peak usage a few times a month or year, and more. With autoscale, you no longer need to manually provision for peak or average capacity.

Azure Cosmos DB is a multi-model database that supports various data models, such as documents, key-value, graph, and column-family3. The core content-model of Cosmos DB’s database engine is based on atom-record-sequence (ARS), which allows it to store and query different types of data in a flexible and efficient way3.

To develop a model that supports order read operations and minimizes the number of requests, you should consider the following factors:

• The size and shape of your data
• The frequency and complexity of your queries
• The latency and throughput requirements of your application
• The trade-offs between storage efficiency and query performance

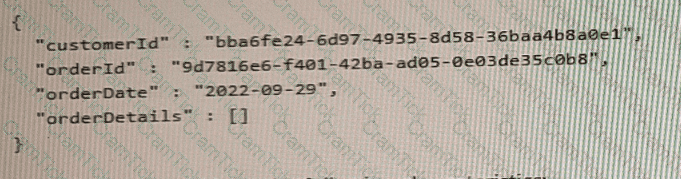

Based on these factors, one possible model that you could implement is B. Create a single database that contains one container. Create a separate document for each order and embed the order items into the order documents.

This model has the following advantages:

• It stores orders and order items as self-contained documents that can be easily retrieved by order ID1.
• It avoids storing redundant data or creating additional containers for order items1.
• It allows you to view the order history of a customer with simple queries1.
• It leverages the benefits of embedding data, such as reducing the number of requests, improving query performance, and simplifying data consistency2.

This model also has some limitations, such as:

• It may not be suitable for some order items that have data that is greater than 2 KB, as it could exceed the maximum document size limit of 2 MB2.
• It may not be optimal for scenarios where order items need to be queried independently from orders or aggregated by other criteria2.
• It may not support transactions across multiple orders or customers, as transactions are scoped to a single logical partition2.

Depending on your specific use case and requirements, you may need to adjust this model or choose a different one. For example, you could use a hybrid data model that combines embedding and referencing data2, or you could use a graph data model that expresses entities and relationships as vertices and edges.

Box 1: country

The country field is filterable.

Note: filterable: Indicates whether to enable the field to be referenced in $filter queries. Filterable differs from searchable in how strings are handled. Fields of type Edm.String or Collection(Edm.String) that are filterable do not undergo lexical analysis, so comparisons are for exact matches only.

Box 2: name

The name field is not Retrievable.

Retrievable: Indicates whether the field can be returned in a search result. Set this attribute to false if you want to use a field (for example, margin) as a filter, sorting, or scoring mechanism but do not want the field to be visible to the end user.

Note: searchable: Indicates whether the field is full-text searchable and can be referenced in search queries.

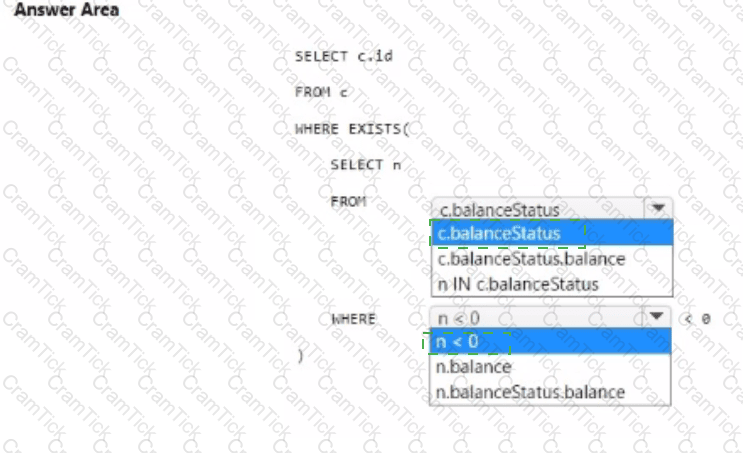

ARRAY_CONTAINS returns a Boolean indicating whether the array contains the specified value. You can check for a partial or full match of an object by using a boolean expression within the command.

The disableLocalAuth property is a boolean flag that indicates whether local authentication methods such as primary/secondary keys are disabled for the Azure Cosmos DB account. Setting this property to true improves security by ensuring that Azure Cosmos DB accounts exclusively require Azure Active Directory identities for authentication1.

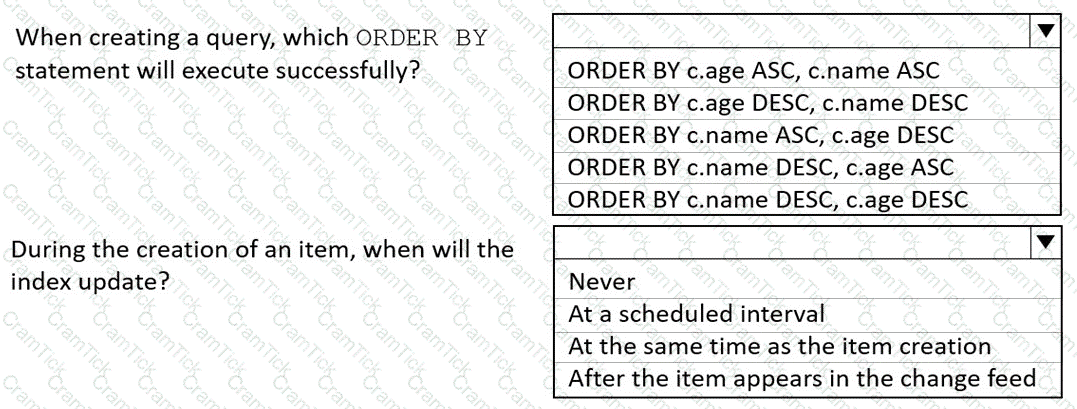

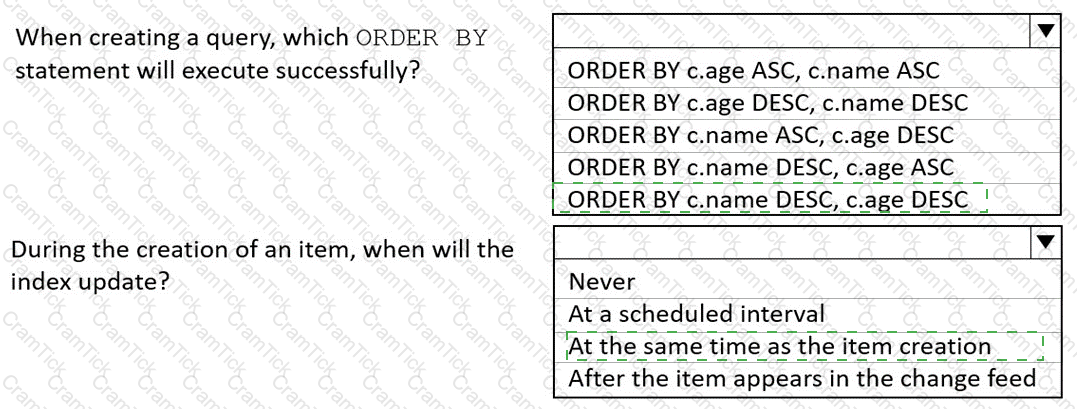

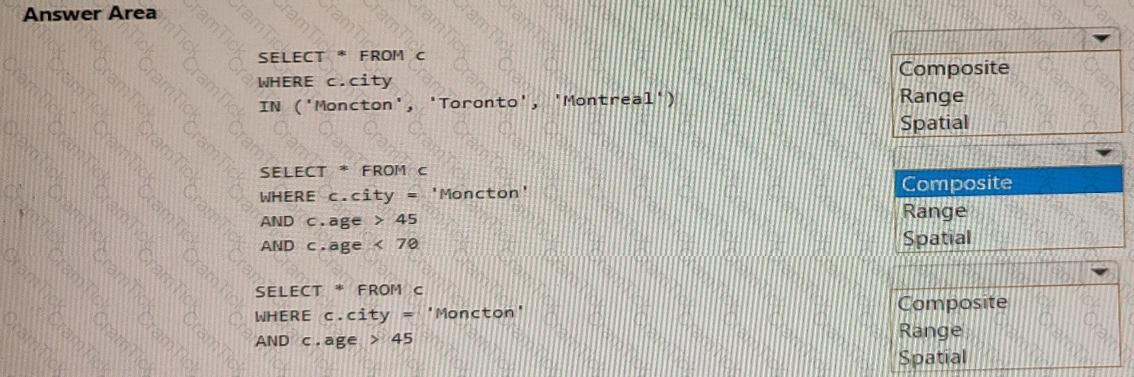

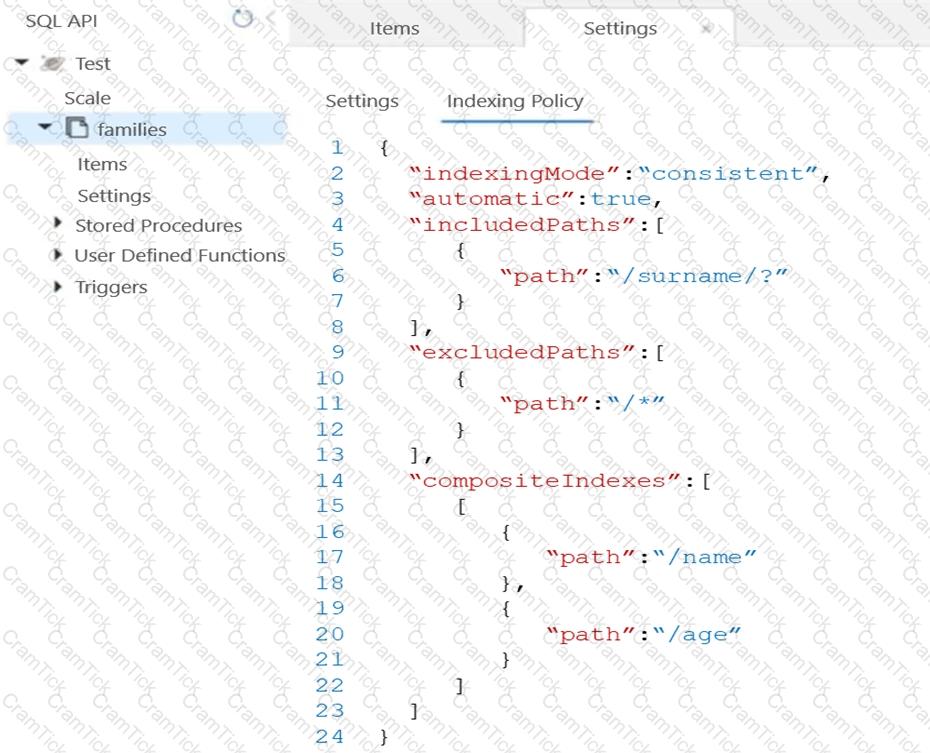

If a query has a filter with two or more properties, adding a composite index will improve performance.

Consider the following query:

SELECT * FROM c WHERE c.name = “Tim” and c.age > 18

In the absence of a composite index on (name ASC, and age ASC), we will utilize a range index for this query. We can improve the efficiency of this query by creating a composite index for name and age.

Queries with multiple equality filters and a maximum of one range filter (such as >,<, <=, >=, !=) will utilize the composite index.

 Azure Cosmos DB offers two different capacity modes: provisioned throughput and serverless1. Provisioned throughput mode allows you to configure a certain amount of throughput (expressed in Request Units per second or RU/s) that is provisioned on your databases and containers. You get billed for the amount of throughput you’ve provisioned, regardless of how many RUs were consumed1. Serverless mode allows you to run your database operations without having to configure any previously provisioned capacity. You get billed for the number of RUs that were consumed by your database operations and the storage consumed by your data1.

To create a database that minimizes costs, you should consider the following factors:

• The read and write volumes of your containers
• The predictability and variability of your traffic
• The latency and throughput requirements of your application
• The geo-distribution and availability needs of your data

Based on these factors, one possible option that you could choose is B. Create a provisioned throughput account. Set the throughput for coll1 to Autoscale. Set the throughput for coll2 and coll3 to Manual.

This option has the following advantages:

• It allows you to handle unpredictable read and write volumes for coll1 by using Autoscale, which automatically adjusts the provisioned throughput based on the current load1.
• It allows you to handle predictable read and write volumes for coll2 and coll3 by using Manual, which lets you specify a fixed amount of provisioned throughput that meets your performance needs1.
• It allows you to optimize your costs by paying only for the throughput you need for each container1.
• It allows you to enable geo-distribution for your account if you need to replicate your data across multiple regions1.

This option also has some limitations, such as:

• It may not be suitable for scenarios where all containers have intermittent or bursty traffic that is hard to forecast or has a low average-to-peak ratio1.
• It may not be optimal for scenarios where all containers have low or sporadic traffic that does not justify provisioned capacity1.
• It may not support availability zones or multi-master replication for your account1.

Depending on your specific use case and requirements, you may need to choose a different option. For example, you could use a serverless account if all containers have low or sporadic traffic that does not require predictable performance or geo-distribution1. Alternatively, you could use a provisioned throughput account with Manual for all containers if all containers have stable and consistent traffic that requires predictable performance or geo-distribution1.

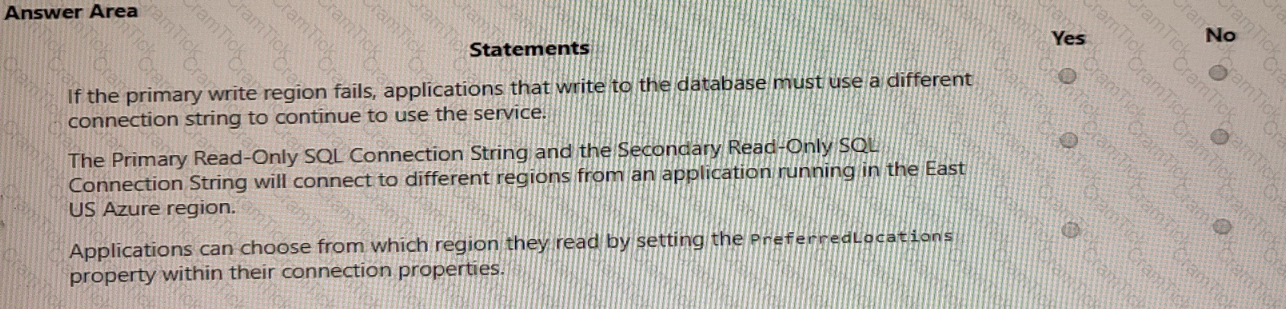

Box 1: Yes

The Automatic failover option allows Azure Cosmos DB to failover to the region with the highest failover priority with no user action should a region become unavailable.

Box 2: No

West Europe is used for failover. Only North Europe is writable.

To Configure multi-region set UseMultipleWriteLocations to true.

Box 3: Yes

Provisioned throughput with single write region costs $0.008/hour per 100 RU/s and provisioned throughput with multiple writable regions costs $0.016/per hour per 100 RU/s.

you can migrate data from various data sources to Azure Cosmos DB using different tools and methods. The choice of the migration tool depends on factors such as the data source, the Azure Cosmos DB API, the size of data, and the expected migration duration1. Some of the common migration tools are:

• Azure Cosmos DB Data Migration tool: This is an open source tool that can import data to Azure Cosmos DB from sources such as JSON files, MongoDB, SQL Server, CSV files, and Azure Cosmos DB collections. This tool supports the SQL API and the Table API of Azure Cosmos DB2.
• Azure Data Factory: This is a cloud-based data integration service that can copy data from various sources to Azure Cosmos DB using connectors. This tool supports the SQL API, MongoDB API, Cassandra API, Gremlin API, and Table API of Azure Cosmos DB3.
• Azure Cosmos DB live data migrator: This is a command-line tool that can migrate data from one Azure Cosmos DB container to another container within the same or different account. This tool supports live migration with minimal downtime and works with any Azure Cosmos DB API4.

For your scenario, if you want to migrate data from a third-party application that is exposed through an OData endpoint to a container in Azure Cosmos DB for NoSQL, you should use Azure Data Factory. Azure Data Factory has an OData connector that can read data from an OData source and write it to an Azure Cosmos DB sink using the SQL API5. You can create a copy activity in Azure Data Factory that specifies the OData source and the Azure Cosmos DB sink, and run it on demand or on a schedule.

Box 1: ConsistencyLevel

The ItemRequestOptions Class ConsistencyLevel property gets or sets the consistency level required for the request in the Azure Cosmos DB service.

Azure Cosmos DB offers 5 different consistency levels. Strong, Bounded Staleness, Session, Consistent Prefix and Eventual - in order of strongest to weakest consistency.

Box 2: _etag

The ItemRequestOptions class helped us implement optimistic concurrency by specifying that we wanted the SDK to use the If-Match header to allow the server to decide whether a resource should be updated. The If-Match value is the ETag value to be checked against. If the ETag value matches the server ETag value, the resource is updated.

Instead create an Azure function that uses Azure Cosmos DB Core (SQL) API change feed as a trigger and Azure event hub as the output.

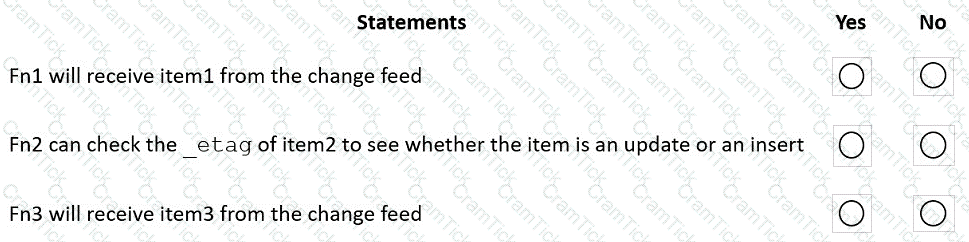

The Azure Cosmos DB change feed is a mechanism to get a continuous and incremental feed of records from an Azure Cosmos container as those records are being created or modified. Change feed support works by listening to container for any changes. It then outputs the sorted list of documents that were changed in the order in which they were modified.

The following diagram represents the data flow and components involved in the solution:

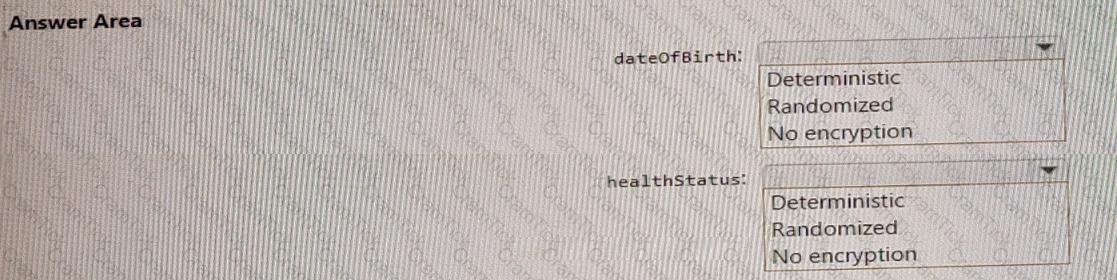

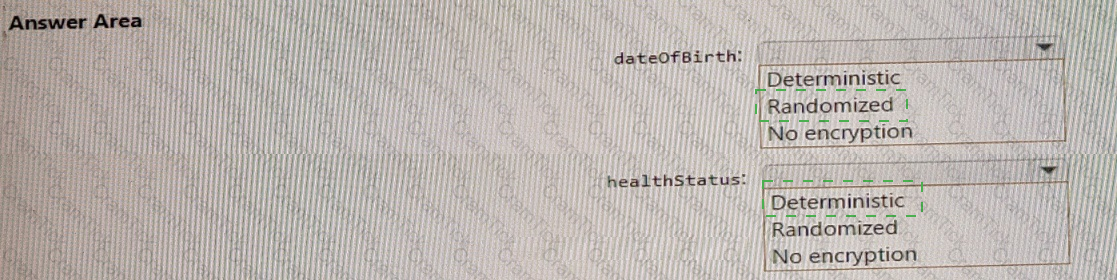

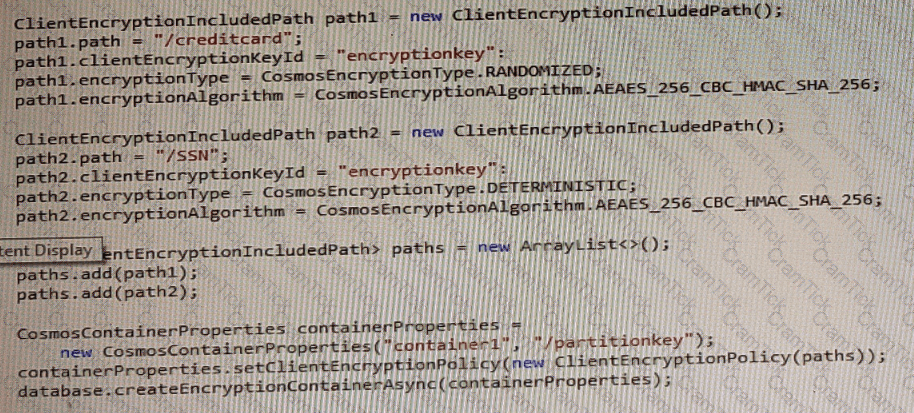

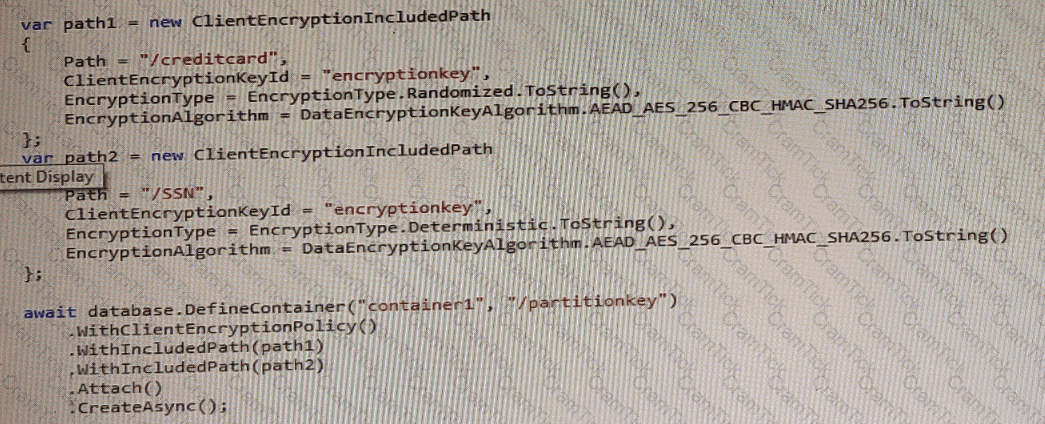

Box 1 = Randomized

Box 2 = Deterministic

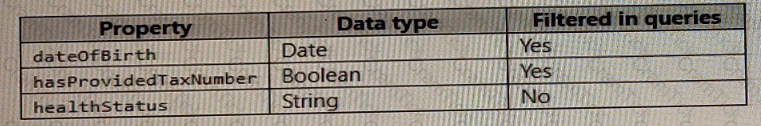

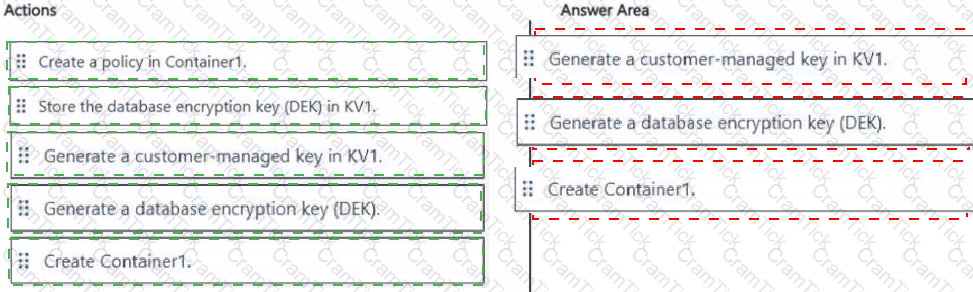

Always Encrypted for Azure Cosmos DB supports two types of encryption: deterministic and randomized1. Deterministic encryption always produces the same encrypted value for any given plain text value. Randomized encryption produces a different encrypted value for the same plain text value.

For dateOfBirth, randomized encryption is the strongest type of encryption because it provides better protection against statistical analysis and brute-force attacks. Deterministic encryption would not be suitable for dateOfBirth because it could reveal patterns or allow equality comparisons1.

For healthStatus, deterministic encryption is the strongest type of encryption because it allows queries to perform equality comparisons and filters on the encrypted property. Randomized encryption would not be suitable for healthStatus because it would prevent any queries on the encrypted property1.

Box 1: Yes

Need to join readings and devices.

Box 2: No

Only readings is required. All required fields are in readings.

Box 3: No

Only devices is required. All required fields are in devices.

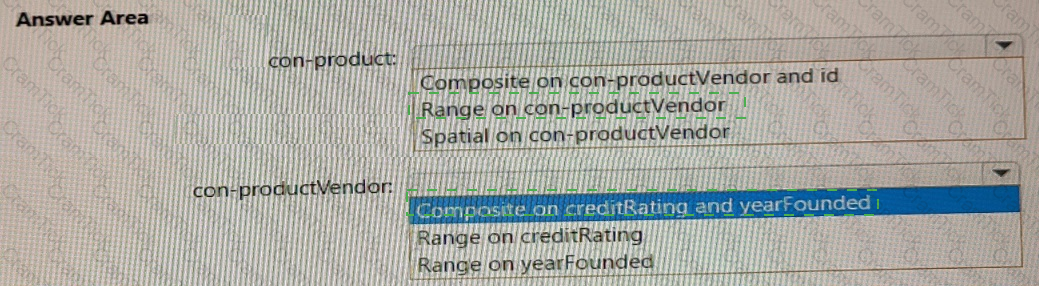

App1 queries the con-product and con-productVendor containers.

Note: Request unit is a performance currency abstracting the system resources such as CPU, IOPS, and memory that are required to perform the database operations supported by Azure Cosmos DB.

Scenario:

Develop an app named App1 that will run from all locations and query the data in account1.

Once multi-region writes are configured, maximize the performance of App1 queries against the data in account1.

Whenever there are multiple solutions for a requirement, select the solution that provides the best performance, as long as there are no additional costs associated.

Bounded staleness is frequently chosen by globally distributed applications that expect low write latencies but require total global order guarantee. Bounded staleness is great for applications featuring group collaboration and sharing, stock ticker, publish-subscribe/queueing etc.

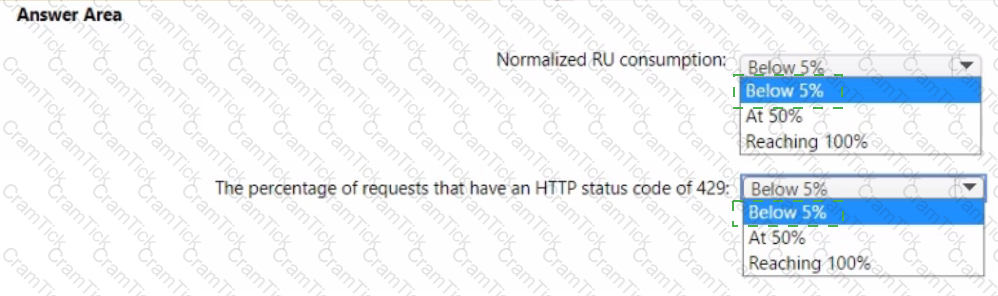

Scenario: Application updates in con-product frequently cause HTTP status code 429 "Too many requests". You discover that the 429 status code relates to excessive request unit (RU) consumption during the updates.

Scenario: Develop an app named App2 that will run from the retail stores and query the data in account2. App2 must be limited to a single DNS endpoint when accessing account2.

By using Azure Private Link, you can connect to an Azure Cosmos account via a private endpoint. The private endpoint is a set of private IP addresses in a subnet within your virtual network.

When you're using Private Link with an Azure Cosmos account through a direct mode connection, you can use only the TCP protocol. The HTTP protocol is not currently supported.
